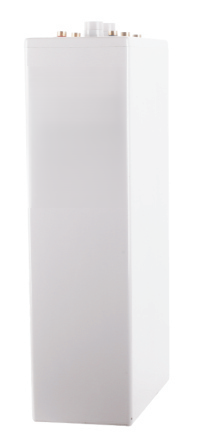

Lead-acid batteries OPZV2000

• （25℃) 20 years design life
• adopt tubular plate with GEL technology
• Gas phase SiO2 colloidal battery technology
• PVC/PR Separator" 厂
• ABS material battery case
• Widely used in communication systems, military fields, power systems, broadcasting and television systems, etc"

Quantity:
Availability:





Inquiry Add to Basket

Model:
OPZV2000
Brand:
TexAi

Product Description

Datasheet

Rated Voltage			2V
Nominal capacity(C10, 1.80V/cell)			2000Ah
Dimension	Length		399±2mm
	Width		214±2mm
	Container Height		772±2mm
Total Height			807±2mm
Approx Weight			143.0kg
Terminal			M8
Container Material			ABS
Rated capacity (25 oc)		2000Ah	C10(200A,1.80V/cell)
		1700Ah	C5(340A, 1.80V/cell)
		1500Ah	C3(500A,1.80V/cell)
		1000Ah	C1(1000A,1.80V/cell)
Max . Discharge Current			10000A (5s)
Internal Resistance(25℃)			Approx 0.32mΩ
Operating Temp . Range		Discharge	-15～50℃
		Charge	-15～50℃
		Storage	-20～40℃
Nominal Operating Temp. Range			25±5℃ (77±5℉)
Max.Charging Current(25℃)			500A
Charge voltage(25℃)		Charge voltage	Temp. Coefficient
	Float	2.23~2.27V/cell	-3mV/cell/o C
	Equalization	2.30~2.40V/cell	-4mV//cell/o C
	Cycle	2.30~2.40V/cell	-5mV//cell/o C
Effect of temp. to Capacity	40℃ (104℉)		105%
	25℃ (77℉)		100%
	0℃ (32℉)		85%
Self Discharge			≤2%/month @ 25℃

(A)25℃ Constant Current Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h
1.60V	2100	1650	1200	750	540	430	365	321	259	212
1.65V	1980	1570	1130	730	530	420	360	317	257	211
1.70V	1870	1500	1110	710	520	418	356	312	254	210
1.75V	1750	1420	1040	690	510	410	350	306	249	207
1.80V	1630	1330	1000	670	500	400	340	298	243	201
1.85V	1500	1210	930	630	480	390	330	288	236	198

(W/cell) 25℃ Constant Power Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h
1.60V	3620	2900	2190	1400	1020	815	693	611	495	406
1.65V	3460	2750	2060	1370	1005	799	687	605	492	405
1.70V	3270	2650	2030	1340	990	797	680	597	488	404
1.75V	3090	2540	1940	1310	975	785	671	588	480	400
1.80V	2920	2430	1860	1280	960	769	658	574	469	389
1.85V	2710	2240	1770	1210	930	757	644	561	460	387

OPZV2000A datasheet.pdf
