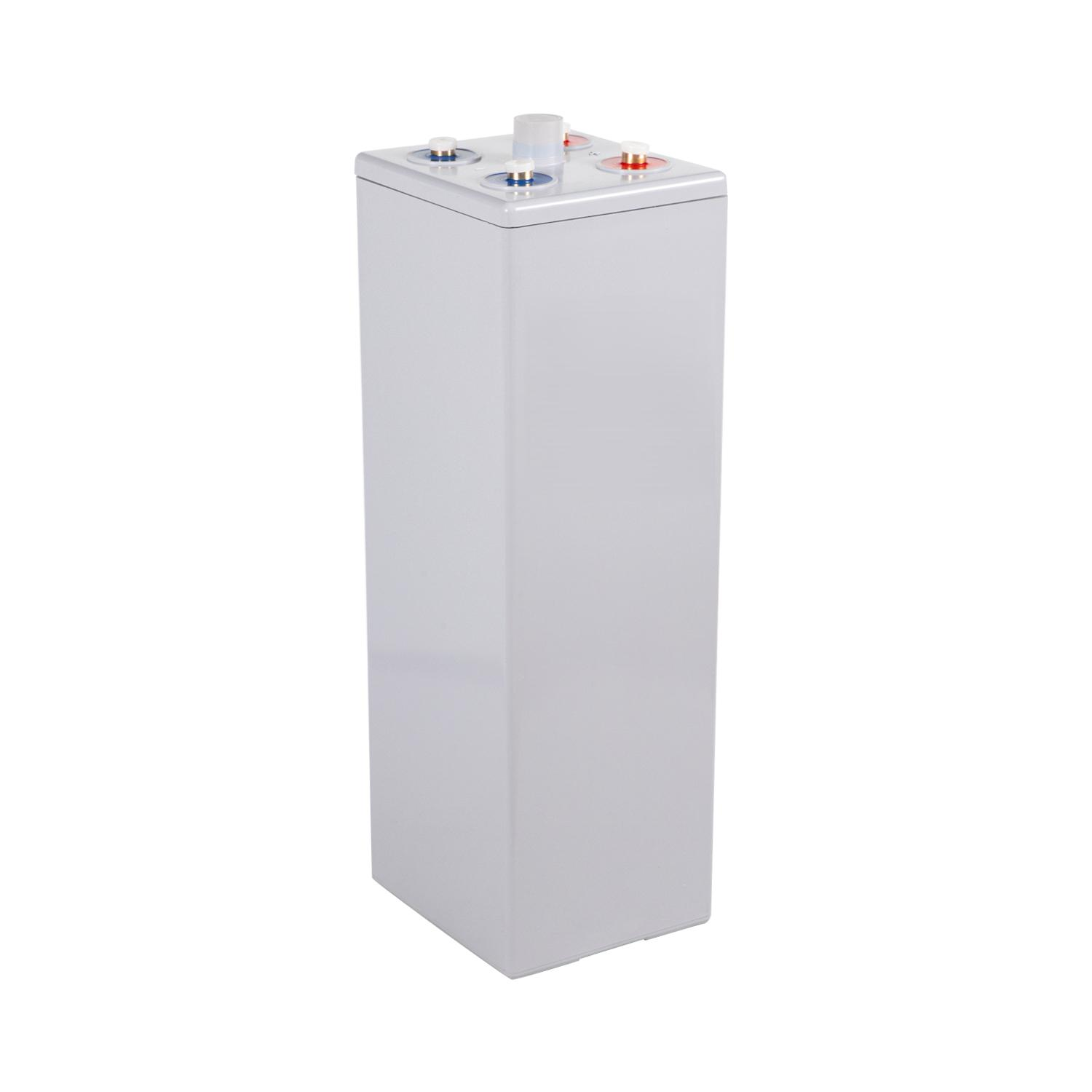

Lead-acid batteries OPZV1000

• （25℃) 20 years design life
• adopt tubular plate with GEL technology
• Gas phase SiO2 colloidal battery technology
• PVC/PR Separator" 厂
• ABS material battery case
• Widely used in communication systems, military fields, power systems, broadcasting and television systems, etc"

Quantity:
Availability:





Inquiry Add to Basket

Model:
OPZV1000
Brand:
TexAi

Product Description

datasheet

Rated Voltage			2V
Nominal capacity(C10, 1.80V/cell)			1000Ah
Dimension	Length		233±2mm
	Width		210±2mm
	Container Height		646±2mm
Total Height			678±2mm
Approx Weight			72.5kg
Terminal			M8
Container Material			ABS
Rated capacity (25 oc)		1000Ah	C10(100A,1.80V/cell)
		800Ah	C5(170A, 1.80V/cell)
		750Ah	C3(250A,1.80V/cell)
		500Ah	C1(500A,1.80V/cell)
Max . Discharge Current			5000A (5s)
Internal Resistance(25℃)			Approx 0.38mΩ
Operating Temp . Range		Discharge	-15～50℃
		Charge	-15～50℃
		Storage	-20～40℃
Nominal Operating Temp. Range			25±5℃ (77±5℉)
Max.Charging Current(25℃)			250A
Charge voltage(25℃)		Charge voltage	Temp. Coefficient
	Float	2.23~2.27V/cell	-3mV/cell/o C
	Equalization	2.30~2.40V/cell	-4mV//cell/o C
	Cycle	2.30~2.40V/cell	-5mV//cell/o C
Effect of temp. to Capacity	40℃ (104℉)		105%
	25℃ (77℉)		100%
	0℃ (32℉)		85%
Self Discharge			≤2%/month @ 25℃

(A)25℃ Constant Current Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h
1.60V	1040	817	594	371	267	213	180.7	158.9	128.2	104.9
1.65V	980	777	559	361	262	208	178.7	156.9	127.2	104.4
1.70V	926	743	549	351	257	207	176.2	154.4	125.7	104.0
1.75V	866	703	515	342	252	203	173.3	151.5	123.3	102.5
1.80V	807	658	500	332	250	198	170.0	147.5	120.3	100.0
1.85V	743	599	460	312	238	193	164.0	142.6	116.8	98.0

(W/cell) 25℃ Constant Power Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h
1.60V	1792	1436	1084	693	505	403.4	343.0	302.4	245.0	201.0
1.65V	1713	1361	1020	678	497	395.5	340.1	299.5	243.5	200.5
1.70V	1619	1307	1005	663	490	394.5	336.6	295.5	241.6	200.0
1.75V	1530	1252	960	648	483	388.6	332.1	291.1	237.6	198.0
1.80V	1445	1203	921	634	475	380.7	325.7	284.1	232.2	192.6
1.85V	1341	1109	876	599	460	374.7	318.8	277.7	227.7	191.6

OPZV1000A datasheet.pdf
