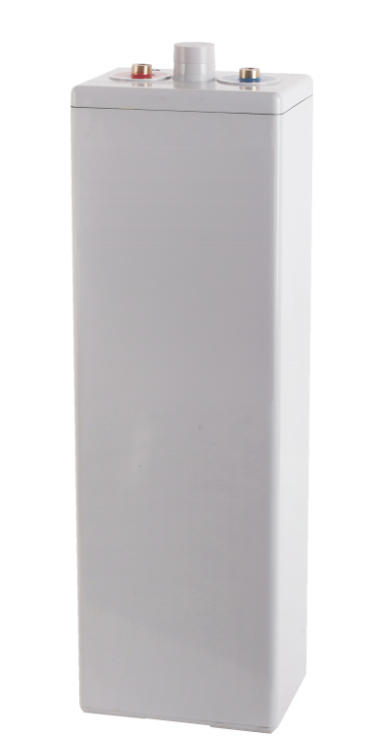

Lead-acid batteries OPZV600

• （25℃) 20 years design life
• adopt tubular plate with GEL technology
• Gas phase SiO2 colloidal battery technology
• PVC/PR Separator" 厂
• ABS material battery case
• Widely used in communication systems, military fields, power systems, broadcasting and television systems, etc"

Quantity:
Availability:





Inquiry Add to Basket

Model:
OPZV600
Brand:
TexAi

Product Description

Datasheet

Rated Voltage			2V
Nominal capacity(C10, 1.80V/cell)			600Ah
Dimension	Length		145±2mm
	Width		206±2mm
	Container Height		646±2mm
Total Height			678±2mm
Approx Weight			45kg
Terminal			M8
Container Material			ABS
Rated capacity (25 oc)		600Ah	C10(60A,1.80V/cell)
		510Ah	C5(102A, 1.80V/cell)
		450Ah	C3(150A,1.80V/cell)
		300Ah	C1(300A,1.80V/cell)
Max . Discharge Current			3000A (5s)
Internal Resistance(25℃)			Approx 0.42mΩ
Operating Temp . Range		Discharge	-15～50℃
		Charge	-15～50℃
		Storage	-20～40℃
Nominal Operating Temp. Range			25±5℃ (77±5℉)
Max.Charging Current(25℃)			150A
Charge voltage(25℃)		Charge voltage	Temp. Coefficient
	Float	2.23~2.27V/cell	-3mV/cell/o C
	Equalization	2.30~2.40V/cell	-4mV//cell/o C
	Cycle	2.30~2.40V/cell	-5mV//cell/o C
Effect of temp. to Capacity	40℃ (104℉)		105%
	25℃ (77℉)		100%
	0℃ (32℉)		85%
Self Discharge			≤2%/month @ 25℃

(A)25℃ Constant Current Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h
1.60V	624	490	356	223	160	128	108	95.3	76.9	63.0
1.65V	588	466	336	217	157	125	107	94.1	76.3	62.7
1.70V	555	446	330	211	154	124	106	92.7	75.4	62.4
1.75V	520	422	309	205	151	122	104	90.9	74.0	61.5
1.80V	484	395	300	199	150	119	102	88.5	72.2	60.0
1.85V	446	359	276	187	143	116	98	85.5	70.1	58.8

(W/cell) 25℃ Constant Power Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h
1.60V	1075	861	650	416	303	242	205.8	181.5	147.0	120.6
1.65V	1028	817	612	407	298	237	204.0	179.7	146.0	120.3
1.70V	971	784	603	398	294	236	202.0	177.3	145.0	120.0
1.75V	918	751	576	389	290	233	199.3	174.6	142.6	118.8
1.80V	867	722	552	380	285	228	195.4	170.5	139.3	115.5
1.85V	805	665	526	359	276	225	191.3	166.6	136.6	114.9

OPZV600A datasheet.pdf
