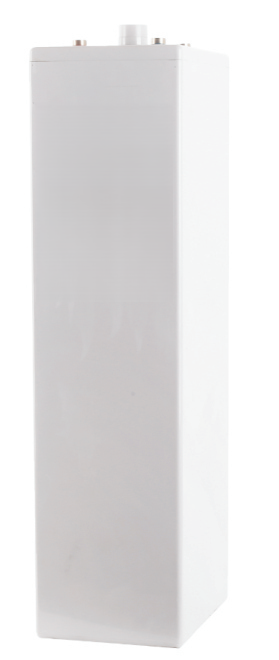

Lead-acid batteries OPZV1500

• （25℃) 20 years design life
• adopt tubular plate with GEL technology
• Gas phase SiO2 colloidal battery technology
• PVC/PR Separator" 厂
• ABS material battery case
• Widely used in communication systems, military fields, power systems, broadcasting and television systems, etc"

Quantity:
Availability:





Inquiry Add to Basket

Model:
OPZV1500
Brand:
TexAi

Product Description

datasheet

Rated Voltage			2V
Nominal capacity(C10, 1.80V/cell)			1500Ah
Dimension	Length		275±2mm
	Width		210±2mm
	Container Height		795±2mm
Total Height			827±2mm
Approx Weight			105.5kg
Terminal			M8
Container Material			ABS
Rated capacity (25 oc)		1500Ah	C10(150A,1.80V/cell)
		12750Ah	C5(255A, 1.80V/cell)
		1125Ah	C3(375A,1.80V/cell)
		750Ah	C1(750A,1.80V/cell)
Max . Discharge Current			7500A (5s)
Internal Resistance(25℃)			Approx 0.35mΩ
Operating Temp . Range		Discharge	-15～50℃
		Charge	-15～50℃
		Storage	-20～40℃
Nominal Operating Temp. Range			25±5℃ (77±5℉)
Max.Charging Current(25℃)			375A
Charge voltage(25℃)		Charge voltage	Temp. Coefficient
	Float	2.23~2.27V/cell	-3mV/cell/o C
	Equalization	2.30~2.40V/cell	-4mV//cell/o C
	Cycle	2.30~2.40V/cell	-5mV//cell/o C
Effect of temp. to Capacity	40℃ (104℉)		105%
	25℃ (77℉)		100%
	0℃ (32℉)		85%
Self Discharge			≤2%/month @ 25℃

(A)25℃ Constant Current Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h	20h
1.60V	1559	1225	891	557	401	319	271.0	238.3	192.3	157.4	80.6
1.65V	1470	1166	839	542	394	312	268.0	235.4	190.8	156.7	80.0
1.70V	1388	1114	824	527	386	310	264.3	231.7	188.6	155.9	79.4
1.75V	1299	1054	772	512	379	304	259.9	227.2	184.9	153.7	78.8
1.80V	1210	988	750	497	375	297	254.0	221.3	180.4	150.0	76.4
1.85V	1114	898	691	468	356	290	245.8	213.8	175.2	147.0	75.3

(W/cell) 25℃ Constant Power Discharge
F.V/Time	15min	30min	1h	2h	3h	4h	5h	6h	8h	10h	20h
1.60V	2688	2153	1626	1040	757	605.1	514.6	453.7	367.5	301.5	154.6
1.65V	2569	2042	1530	1017	746	593.3	510.1	449.2	365.3	300.7	154.1
1.70V	2428	1960	1507	995	735	591.8	504.9	443.3	362.3	300.0	153.5
1.75V	2294	1879	1440	973	724	582.9	498.2	436.6	356.4	297.0	152.9
1.80V	2168	1804	1381	950	713	571.0	488.6	426.2	348.2	288.8	148.8
1.85V	2012	1663	1314	898	691	562.1	478.2	416.5	341.6	287.3	147.6

OPZV1500A datasheet.pdf
