The Basic Working Principle of a Communication Power Rectifier Module

A communication power system must provide stable, reliable, and continuous DC power for telecom equipment, base stations, broadband networks, railway communication systems, broadcasting networks, and enterprise communication infrastructure. In these applications, even a short power interruption or voltage fluctuation may affect signal transmission, network uptime, and equipment safety.

This is why the communication power rectifier module plays an important role in telecom power systems. Its main function is to convert AC input power into regulated DC output power. The DC output is then used to supply communication equipment and charge backup battery systems.

A modern Rectifier Power Module does much more than simple AC-to-DC conversion. It also supports voltage regulation, power factor correction, output filtering, protection, load sharing, monitoring, and system-level reliability. For telecom power projects, understanding the basic working principle of the module helps engineers, buyers, and system integrators choose the right product for real operating conditions.

This article explains how a communication power rectifier module works, what main components are involved, why stable DC output matters, and how to select a suitable rectifier module for communication power applications.

Key Takeaway

A communication power rectifier module converts AC input into stable DC output for telecom and communication equipment. Its basic working process usually includes AC input protection, EMI filtering, power factor correction, first-stage rectification, intermediate DC bus formation, high-frequency switching, isolation, output rectification, filtering, voltage regulation, and system monitoring.

In simple terms:

• AC power enters the rectifier module.

• The input stage protects the module from abnormal voltage and surge.

• EMI filtering reduces electrical noise.

• PFC improves input power quality and efficiency.

• AC power is converted into an intermediate DC bus.

• High-frequency switching and isolation improve conversion efficiency and safety.

• Output rectification and filtering produce stable DC power.

• Control circuits regulate voltage, monitor operation, and protect connected equipment.

The final result is a stable DC power supply suitable for communication equipment, backup batteries, and critical telecom infrastructure.

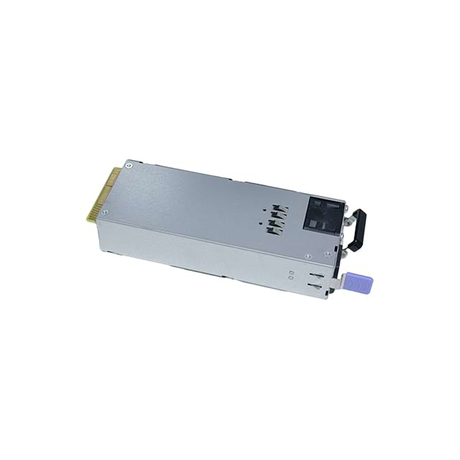

What Is a Communication Power Rectifier Module?

A communication power rectifier module is a power conversion device used in telecom and communication power systems. It converts AC power from the grid or generator into DC power required by communication equipment.

Many telecom systems use DC power because DC output is stable, compatible with batteries, and suitable for sensitive electronic equipment. In many applications, the rectifier module supplies DC loads while also charging backup batteries. If the AC input fails, the battery system can continue supplying power to the equipment.

A communication power rectifier module is commonly used in:

• Telecom base stations

• Broadband networks

• Broadcasting networks

• Railway communication systems

• Enterprise communication rooms

• Remote telecom sites

• Data communication equipment rooms

• Battery backup DC power systems

For users who want to understand more about telecom rectifier module structure and applications, RuixiaoTech’s Telecom Rectifier Power Module resource can be used as a supporting internal reference.

Why Communication Equipment Requires Stable DC Power

Communication equipment must operate continuously. Base station equipment, transmission devices, routers, switches, monitoring units, and signal systems all depend on stable power.

Unstable voltage may cause:

• Equipment restart

• Communication interruption

• Data transmission errors

• Battery charging failure

• Module overheating

• System alarm

• Reduced service life

• Higher maintenance cost

Compared with general electrical equipment, communication systems usually have higher requirements for power stability and backup operation. This is one reason DC power systems are widely used in telecom infrastructure.

A DC power system can work closely with battery backup. The rectifier module converts AC power into DC power during normal operation. At the same time, it can support battery charging. When grid power fails, the battery system can continue supplying the DC load.

This structure helps communication networks maintain uptime during unstable input conditions.

Basic Working Principle of a Communication Power Rectifier Module

The basic working principle of a communication power rectifier module can be understood as a controlled AC-to-DC power conversion process. The module does not simply “change AC into DC.” It must also clean the input, improve efficiency, isolate circuits, regulate output, reduce ripple, and protect the system.

Working Principle Flow Chart

AC Input
   ↓
Input Protection
   ↓
EMI Filtering
   ↓
Power Factor Correction
   ↓
First-Stage Rectification
   ↓
Intermediate DC Bus
   ↓
High-Frequency Switching
   ↓
Isolation Transformer
   ↓
Output Rectification
   ↓
Output Filtering
   ↓
Voltage Regulation
   ↓
Stable DC Output
   ↓
Communication Equipment / Battery System

This flow shows how raw AC input becomes stable DC power suitable for telecom and communication loads.

1. AC Input and Surge Protection

The process begins when AC power enters the rectifier module. This power may come from the utility grid, generator, or site power distribution system.

The input stage usually includes protection components to reduce the risk caused by abnormal voltage, surge, or transient disturbance. This is important because telecom sites may face unstable grid conditions, lightning-related surge, switching interference, or sudden input fluctuation.

Input protection helps protect both the rectifier module and downstream communication equipment.

2. EMI Filtering

After input protection, the AC power passes through an EMI filter. EMI means electromagnetic interference.

In a communication power system, electrical noise can affect both power quality and sensitive electronic devices. The EMI filter helps suppress high-frequency interference and reduces unwanted noise entering or leaving the module.

This stage is important because communication equipment often requires clean and stable power. Poor filtering may increase ripple, noise, and interference risk.

3. Power Factor Correction

Power factor correction, often called PFC, improves how efficiently the rectifier module draws power from the AC input source.

Without proper PFC, the module may draw current in a less efficient way, creating more stress on the grid and increasing power loss. A PFC circuit helps improve input current waveform and overall power quality.

Main benefits of PFC include:

• Better input efficiency

• Lower harmonic distortion

• Reduced stress on the power grid

• Improved system stability

• Better performance under varying load conditions

For telecom sites with many power modules operating together, good power factor correction is especially valuable.

4. First-Stage Rectification and Intermediate DC Bus

After filtering and PFC, the module performs the first stage of rectification. At this stage, AC power is converted into an intermediate DC voltage.

This intermediate DC bus is not usually the final output voltage. Instead, it acts as an internal power stage that prepares the energy for high-frequency conversion.

The DC bus allows the module to manage energy more efficiently before the next conversion stage. It also helps support stable downstream regulation.

5. High-Frequency Switching

The intermediate DC power is then processed through a high-frequency switching circuit. This is one of the key reasons modern rectifier modules can be compact and efficient.

High-frequency switching allows the module to convert and regulate power more effectively than older low-frequency designs. It can reduce transformer size, improve power density, and support faster control response.

For communication power rectifier modules, high-frequency switching helps achieve:

• Compact module design

• Higher conversion efficiency

• Better power density

• Faster voltage regulation

• Improved system integration

This is particularly useful in telecom cabinets and communication equipment rooms where space is limited.

6. Isolation Transformer

The high-frequency switching stage is usually connected with an isolation transformer. The transformer provides electrical isolation between input and output sides and helps adjust the voltage level.

Isolation is important for safety, system protection, and stable operation. It helps reduce the risk of direct electrical faults affecting the DC output side.

In telecom power systems, isolation also supports more reliable operation under complex site conditions.

7. Output Rectification and Filtering

After high-frequency transformation, the power is rectified again on the output side. This stage converts the transformed waveform into usable DC output.

Then, the output filter reduces ripple and noise. Clean DC output is essential for communication equipment because excessive ripple may affect equipment stability and service life.

Output filtering helps provide:

• Lower DC ripple

• Cleaner output voltage

• Better equipment protection

• More stable battery charging

• Improved communication power quality

8. Voltage Regulation and Load Adjustment

The control circuit continuously monitors the output voltage and current. If the load changes, the control system adjusts the switching operation to keep the DC output stable.

For example, if the communication load increases, the module responds by adjusting power delivery. If the load decreases, the module reduces output accordingly.

This closed-loop regulation helps maintain stable DC voltage under changing load conditions.

Module Working Stages

Key Components Inside a Telecom Rectifier Module

A telecom rectifier module contains several important components. Each part contributes to stable power conversion and system reliability.

These components work together to convert unstable or variable AC input into reliable DC output for communication equipment.

How the Rectifier Module Protects Communication Equipment

A communication power rectifier module must do more than supply power. It must also protect communication equipment from electrical faults and abnormal operating conditions.

Overvoltage Protection

Overvoltage protection helps prevent the output voltage from rising beyond a safe level. This protects telecom equipment, batteries, and connected DC loads.

Overcurrent Protection

Overcurrent protection limits output current when the load becomes abnormal. This helps prevent module damage and reduces the risk of cable or equipment failure.

Short-Circuit Protection

If the output side experiences a short circuit, the module must respond quickly. Short-circuit protection helps shut down or limit output to prevent serious damage.

Overtemperature Protection

Rectifier modules generate heat during operation. If the internal temperature becomes too high, overtemperature protection can reduce output or trigger shutdown to protect the module.

Fault Alarm and Remote Monitoring

Modern telecom power systems often require remote monitoring. A rectifier module may provide alarm information related to input fault, output fault, high temperature, fan fault, communication fault, or module failure.

This is valuable for unmanned telecom sites and distributed networks. Maintenance teams can detect issues earlier and respond more efficiently.

Protection and Monitoring Functions

Where Communication Power Rectifier Modules Are Used

Communication power rectifier modules are used wherever communication equipment requires stable DC power. They are especially important in systems that require continuous operation and backup power support.

Common applications include:

Telecom Base Stations

Base stations require stable DC power for radio equipment, transmission devices, and backup batteries. A telecom rectifier module helps maintain continuous operation.

Broadband Networks

Broadband communication systems depend on reliable power for transmission and access equipment. Rectifier modules support stable DC output and system backup.

Broadcasting Networks

Broadcasting systems require stable power for signal transmission equipment. A reliable DC power system helps reduce service interruption risk.

Railway Communication Systems

Railway communication systems require high reliability because communication stability can affect operational safety. Rectifier modules support continuous DC power and backup operation.

Enterprise Communication Rooms

Enterprise network rooms may contain switches, routers, monitoring systems, and communication devices. Rectifier modules can help provide stable DC power and backup support.

Remote Communication Sites

Remote sites may face unstable input power and difficult maintenance conditions. Rectifier modules with monitoring, protection, and redundancy functions are useful for these applications.

Application Table

How to Choose the Right Rectifier Power Module

Choosing the right Rectifier Power Module requires more than checking the product name. The module must match the actual communication power system.

1. Output Voltage

Telecom and communication systems commonly use 48V, 54V, or -48V DC configurations. The selected module must match the required DC output voltage and battery system.

2. Output Power

Output power should be selected according to total load demand, battery charging requirement, redundancy plan, and future expansion.

A power module should not operate at its limit for long periods. Proper capacity margin helps improve reliability.

3. Conversion Efficiency

A high efficiency rectifier module reduces power loss and heat generation. This is especially important for telecom systems that operate continuously.

Higher efficiency can help reduce operating cost and improve thermal performance.

4. Ripple and Noise

Communication equipment often requires clean DC power. Excessive ripple or noise may affect equipment performance.

When selecting a module, check output ripple, noise level, and filtering performance.

5. Redundancy and Load Sharing

For critical communication systems, redundancy is important. Multiple rectifier modules can be connected in parallel to support load sharing and N+1 redundancy.

If one module fails, the remaining modules can continue supplying power.

6. Monitoring and Communication

Remote monitoring is useful for telecom networks with many sites. The module should support the required monitoring functions and communication interface.

Useful monitoring data may include voltage, current, temperature, alarm status, module status, and battery charging condition.

7. Maintenance and Hot-Swap Design

A hot-swappable rectifier module can be replaced without shutting down the entire system. This reduces downtime and simplifies field maintenance.

8. Installation Environment

Different sites have different operating conditions. Before choosing a module, check temperature, humidity, altitude, dust exposure, cabinet size, airflow, and maintenance access.

Rectifier Power Module Selection Checklist

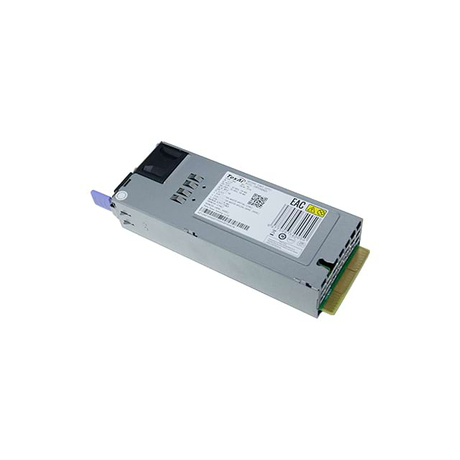

Why Choose RuixiaoTech Rectifier Power Module Solutions?

RuixiaoTech provides rectifier module products and communication power solutions for telecom networks, broadband systems, broadcasting networks, railway communication systems, enterprise networks, and other critical power applications.

For communication power projects, RuixiaoTech can help users select suitable Rectifier Power Module solutions based on output voltage, power capacity, input range, backup battery configuration, redundancy design, monitoring requirements, and installation environment.

Users can review the Rectifier for telecom and communication power applications, or explore broader telecommunications equipment power solutions according to project needs.

A reliable communication power rectifier module should not be selected only by rated power. It should be selected according to actual load, DC output requirement, backup time, site environment, and long-term maintenance plan.

For telecom base stations, broadband networks, railway communication, broadcasting systems, enterprise equipment rooms, and remote communication sites, RuixiaoTech can recommend suitable rectifier module solutions for stable DC power supply.

Conclusion

The basic working principle of a communication power rectifier module is to convert AC input into stable DC output through a controlled power conversion process. This process includes input protection, EMI filtering, power factor correction, intermediate DC bus conversion, high-frequency switching, electrical isolation, output rectification, output filtering, and voltage regulation.

For communication power systems, stable DC output is essential. It supports telecom equipment, communication devices, backup batteries, and critical network infrastructure. A modern rectifier module also provides protection, monitoring, redundancy, and maintenance convenience.

When selecting a Rectifier Power Module, users should consider output voltage, output power, efficiency, ripple and noise, redundancy, monitoring, hot-swap design, and installation environment.

Need a reliable communication power rectifier module for your project? Contact RuixiaoTech to discuss your required DC output voltage, power rating, input conditions, backup battery configuration, redundancy design, monitoring requirements, and application environment.

FAQ

1. What is a communication power rectifier module?

A communication power rectifier module is a power conversion device that converts AC input into stable DC output for telecom and communication equipment. It is commonly used in base stations, broadband networks, railway communication systems, broadcasting networks, and enterprise communication rooms.

2. How does a communication power rectifier module work?

It works by processing AC input through protection, EMI filtering, power factor correction, rectification, DC bus conversion, high-frequency switching, isolation, output rectification, filtering, and voltage regulation. The final output is stable DC power.

3. Why do telecom systems use DC power?

Telecom systems use DC power because communication equipment and backup batteries require stable and continuous power. DC power systems are also suitable for battery backup and critical communication infrastructure.

4. What are the main components of a Rectifier Power Module?

Main components include input protection circuit, EMI filter, PFC circuit, rectifier bridge, DC bus capacitor, switching circuit, isolation transformer, output rectifier, output filter, control board, communication interface, and cooling system.

5. What is PFC in a rectifier module?

PFC means power factor correction. It improves input power quality, reduces harmonic distortion, and helps the module draw power more efficiently from the AC input source.

6. Why is output filtering important in a telecom rectifier module?

Output filtering reduces ripple and electrical noise in the DC output. This helps protect sensitive communication equipment and supports more stable system operation.

7. What output voltage is common for communication power rectifier modules?

Common output voltage levels include 48V, 54V, and -48V DC, depending on the telecom equipment, battery configuration, and power system design.

8. How do I choose the right communication power rectifier module?

You should check output voltage, output power, conversion efficiency, ripple and noise, input range, redundancy, load sharing, monitoring function, hot-swap support, and installation environment.
