A rectifier module is a fundamental power conversion device engineered to convert alternating current (AC) into stable direct current (DC). In modern industrial applications, a specialized Telecom Rectifier Power Module provides highly efficient, reliable, and scalable electricity to sensitive communication nodes, data centers, and network infrastructures, ensuring continuous operation through advanced power conversion, voltage regulation, and integrated thermal management systems.
Section | Summary |
Overview of Rectifier Modules | Introduces the foundational operation, core engineering principles, and internal component architectures defining a Telecom Rectifier Power Module. |
Key Features and Benefits of Rectifier Modules | Details the strategic advantages including modular scalability, energy saving metrics, remote intelligent controls, and compact dimensions. |
How to Select the Right Rectifier Module | Provides a technical blueprint for evaluating grid parameters, ensuring total hardware integration, and planning future infrastructure expansions. |
Maintenance and Troubleshooting of Rectifier Modules | Outlines vital preventative maintenance protocols, diagnostic procedures, and system optimization techniques to maximize operational lifespan. |
An overview of rectifier modules reveals that these systems serve as the core power conversion architecture transforming raw AC grid input into refined DC power for critical systems. The integration of a high-performance Telecom Rectifier Power Module ensures that sophisticated networking components receive a non-disruptive, regulated voltage feed free from grid distortions.
Modern electrical grids deliver energy via alternating current due to distribution efficiencies over long distances. However, sensitive electronic components, communication microprocessors, and storage battery systems require continuous, smooth direct current. A professional Telecom Rectifier Power Module addresses this critical discrepancy by providing seamless transformation. By implementing advanced high-frequency switching technology, each individual Telecom Rectifier Power Module stabilizes the incoming electrical wave, protecting high-density hardware from voltage surges, frequency drops, and harmonic distortions common in industrial environments.
The operational framework of a Telecom Rectifier Power Module depends heavily on solid-state electronics designed to manage substantial current flows without excessive thermal loss. Industries rely on the steady output of the Telecom Rectifier Power Module to sustain around-the-clock workflows. Whether deployed inside a remote communications enclosure or integrated within a central data hub, the Telecom Rectifier Power Module functions as a protective and transformative barrier, maintaining continuous output levels even when the main grid experiences severe instability.
When selecting configuration topologies, engineers look at how a Telecom Rectifier Power Module manages dynamic load shifts. Under peak operational demands, a Telecom Rectifier Power Module adjusts its internal conversion rate instantly to match power consumption requirements. This intelligent adjustment capability is why the specialized Telecom Rectifier Power Module remains an indispensable element across global industrial infrastructures, telecom networks, and high-availability power plants.
A Telecom Rectifier Power Module is a specialized solid-state device engineered to convert fluctuating alternating current into ultra-stable direct current. This conversion process is vital for systems where any minor power fluctuation could lead to systemic data loss or catastrophic hardware damage. Incorporating an advanced design, a modern Telecom Rectifier Power Module provides the necessary filtration and regulation to satisfy the strict power specifications of modern digital communications setups.
Unlike basic diode bridges found in consumer electronics, an industrial Telecom Rectifier Power Module incorporates integrated microprocessors, power factor correction circuits, and high-frequency active filters. This structural depth allows the Telecom Rectifier Power Module to maintain precision tolerances under challenging field conditions. The fundamental purpose of a Telecom Rectifier Power Module is to supply continuous clean energy while maximizing overall power density within standardized rack systems.
The conversion mechanism within a Telecom Rectifier Power Module occurs in several distinct, highly controlled stages. First, the input stage of the Telecom Rectifier Power Module receives raw AC power from the grid, passing it through electromagnetic interference filters to eliminate high-frequency line noise. Next, the active power factor correction circuit within the Telecom Rectifier Power Module realigns the current wave with the voltage wave, optimizing input efficiency and reducing overall grid stress.
Once pre-filtered, the alternating current is converted into an intermediate high-voltage DC signal inside the Telecom Rectifier Power Module. This intermediate signal is then chopped into ultra-high frequency AC by solid-state switches operating at tens of kilohertz. Finally, a high-frequency transformer inside the Telecom Rectifier Power Module steps down this voltage, and a final high-speed diode matrix rectifies it back into clean, ripple-free DC energy customized for delicate communications arrays.

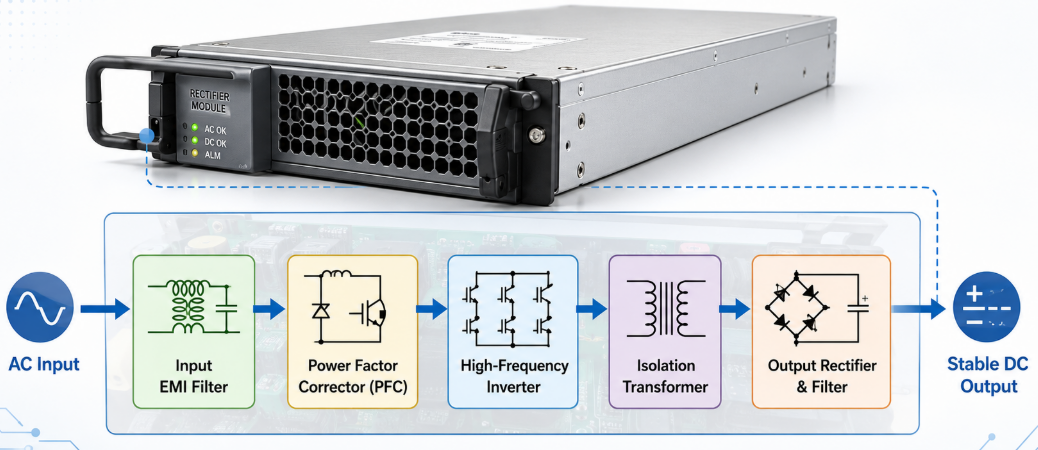

Every reliable Telecom Rectifier Power Module consists of multiple specialized sub-assemblies working together to guarantee uninterrupted performance. The input protection assembly of the Telecom Rectifier Power Module blocks dangerous transient spikes. The active switching topology inside the Telecom Rectifier Power Module handles high frequency modulation, while the output filtering stage cleans up remaining residue, producing exceptionally smooth direct current outputs.
Component Name | Primary Engineering Function within Telecom Rectifier Power Module | Technical Specifications & Materials |
Input EMI Filter | Suppresses line noise and prevents internal Telecom Rectifier Power Module switching frequencies from feeding back into the grid. | High-permeability nanocrystalline cores, X/Y safety capacitors. |
Power Factor Corrector | Optimizes input current waveforms to achieve power factors exceeding 0.99 within the Telecom Rectifier Power Module system. | Active boost topology using high-speed silicon carbide MOSFETs. |
High-Frequency Inverter | Converts intermediate DC into high-frequency AC to enable substantial size reduction of the internal transformer block. | Resonant LLC converter operating from 100 kHz to 300 kHz. |
Isolation Transformer | Provides complete electrical isolation between input grid lines and sensitive output loads inside the Telecom Rectifier Power Module. | Ferrite core material with multi-layer planar windings. |
Output Rectifier & Filter | Executes final synchronous rectification and smooths the DC voltage to eliminate high-frequency ripple components. | Low RDS(on) synchronous rectification MOSFETs, solid polymer capacitors. |
The essential features and benefits of rectifier modules highlight their ability to increase energy density, improve network availability, and minimize operational expenditures through automated performance tracking. Implementing a highly efficient Telecom Rectifier Power Module allows operators to maximize system uptime while cutting overall power distribution overhead.
The adoption of an intelligent Telecom Rectifier Power Module provides unprecedented reliability across critical installations. By incorporating hot-swappable architectures, each Telecom Rectifier Power Module can be inserted or extracted without powering down the connected equipment. This parallel redundancy guarantees that if an individual Telecom Rectifier Power Module requires servicing, neighboring modules instantly absorb the load, eliminating operational downtime.
Furthermore, the thermal management systems integrated into a high-grade Telecom Rectifier Power Module utilize intelligent speed-controlled fans. These components adjust airflow based on real-time load conditions and internal temperatures. This precise adjustment reduces acoustic noise, minimizes dust accumulation within the internal circuitry, and extends the operational lifecycle of the Telecom Rectifier Power Module considerably under continuous duty cycles.
From an operational standpoint, the sophisticated circuitry of a modern Telecom Rectifier Power Module provides exceptional voltage stability. It dampens microsecond voltage drops and long-term brownout conditions seamlessly. This clean output profile is exactly why the modern Telecom Rectifier Power Module is heavily favored across demanding industrial sectors, off-grid telecom towers, and modern data communication infrastructures.
Hot-Swappable Design Architecture: Individual Telecom Rectifier Power Module units are designed for quick hot-swapping, allowing maintenance personnel to replace components without interrupting system operations.
Parallel N+1 Redundancy Configurations: Multiple Telecom Rectifier Power Module blocks can be tied together in parallel configurations, ensuring that backup capacity is always active to prevent system failure.
Flexible Capacity Expansion Paths: As network demands grow, additional Telecom Rectifier Power Module systems can be added to existing shelf assemblies, avoiding expensive upfront hardware investments.
Maximizing conversion efficiency is a primary design benefit of the modern Telecom Rectifier Power Module. Utilizing a cutting-edge high-efficiency Telecom Rectifier Power Module reduces electrical losses by up to fifty percent compared to legacy conversion topologies. This improvement directly lowers monthly utility expenditures while minimizing carbon footprints across large-scale facilities.
High efficiency inside a Telecom Rectifier Power Module also translates directly to reduced internal heat generation. Less heat dissipation means lower stress on internal components, which significantly increases the mean time between failures for the entire Telecom Rectifier Power Module array. This structural advantage helps maintain stable room temperatures, decreasing the energy required by facility cooling fans and air conditioning systems.
Modern communication systems require constant oversight, a need met by the smart telemetry systems embedded in each Telecom Rectifier Power Module. Through digital communication buses like CAN or RS485, every Telecom Rectifier Power Module reports precise values for input voltage, output current, thermal conditions, and individual component health statuses to a central controller.
This deep telemetry framework enables predictive maintenance protocols. Operators can track efficiency variations across a specific Telecom Rectifier Power Module and address minor wear before a component failure occurs. Remote control capabilities also allow technicians to adjust output voltages or cycle specific Telecom Rectifier Power Module units online or offline remotely to optimize system efficiency.
Space optimization is a crucial factor in modern network installations, making the compact form factor of the modern Telecom Rectifier Power Module highly advantageous. By leveraging advanced high-frequency switching technology, a powerful Telecom Rectifier Power Module can fit into standard 1U or 2U rack footprints, freeing up valuable space for revenue-generating networking equipment.
The standardized mounting styles of the Telecom Rectifier Power Module ensure fast integration into existing power cabinets. This high power density means engineers can deploy high-capacity systems in space-constrained urban enclosures or remote outdoor cabinets. This adaptability makes the Telecom Rectifier Power Module an ideal option for modernizing legacy network installations.
Feature Set | Operational Advantage of Telecom Rectifier Power Module | Performance Impact Metrics |
Ultra-High Efficiency | Reduces internal thermal loss within the Telecom Rectifier Power Module enclosure. | Up to 96.5% efficiency at optimal load conditions. |
Intelligent Digital Bus | Provides comprehensive parameter visibility across the active Telecom Rectifier Power Module. | Real-time CAN bus telemetry reporting with accuracy under 1%. |
High Power Density | Maximizes output capacity per unit volume of the Telecom Rectifier Power Module housing. | Exceeds 30W per cubic inch in standard rack enclosures. |
Selecting the right rectifier module involves an accurate analysis of load requirements, environmental constraints, and system integration parameters to ensure long-term stability. Choosing an appropriately rated Telecom Rectifier Power Module guarantees that connected networking assets operate with clean power under all conditions.
The selection process requires a thorough examination of both current power profiles and projected growth trends. An improperly sized Telecom Rectifier Power Module can lead to premature component failure or insufficient backup runtime during grid outages. Engineers must carefully evaluate the nominal DC output voltage required, ensuring the chosen Telecom Rectifier Power Module can maintain tight voltage regulation across various load conditions.
Additionally, input grid stability plays a major role in choosing a Telecom Rectifier Power Module. In areas prone to voltage fluctuations or frequent brownouts, the Telecom Rectifier Power Module must feature a broad input voltage window to prevent frequent switching to battery backup modes. This wide tolerance safeguards battery health and ensures the Telecom Rectifier Power Module continues delivering stable DC output despite severe grid fluctuations.
Finally, physical constraints like space limitations, ventilation access, and connection types must be balanced with total cost considerations. Investing in a robust Telecom Rectifier Power Module with advanced features reduces long-term maintenance costs and minimizes unexpected downtime, providing excellent return on investment over years of continuous field operation.
Calculate Total Steady-State Demand: Sum the continuous power ratings of all connected devices to establish the baseline load for the Telecom Rectifier Power Module array.
Factor in Redundancy Margins: Implement an N+1 or N+2 configuration strategy, ensuring the total Telecom Rectifier Power Module capacity can handle full loads if one or more units fail.
Account for Peak Startup Currents: Select a Telecom Rectifier Power Module capable of managing transient current surges when equipment initializes, preventing safety trips.
Integration success relies on complete electrical and physical compatibility between the new Telecom Rectifier Power Module and existing plant infrastructure. The backplane connections within the distribution cabinet must match the connector configuration of the incoming Telecom Rectifier Power Module to ensure low-resistance power transfer.
On the software layer, the digital communication protocol used by the Telecom Rectifier Power Module must align with the existing supervisory controller system. If the central monitoring hub uses standard SNMP or Modbus protocols, the newly integrated Telecom Rectifier Power Module must communicate using identical parameters to prevent telemetry integration errors.
Operating environments can significantly impact the long-term reliability of a Telecom Rectifier Power Module. Units deployed in hot, humid outdoor enclosures require ruggedized designs with conformal coatings on all internal circuit boards to protect against moisture, dust infiltration, and salt-air corrosion.
Temperature derating curves must also be closely analyzed during the selection phase. A premium Telecom Rectifier Power Module can maintain full output capacity across a broad temperature range, such as minus ten to sixty degrees Celsius. However, extreme temperatures may require derating the total current capacity, making it critical to size the Telecom Rectifier Power Module system based on peak local ambient conditions.
Designing power systems with future expansion in mind avoids expensive system overhauls as network requirements grow. Utilizing a scalable modular Telecom Rectifier Power Module system allows operators to install unpopulated power shelves initially, filling empty slots with additional units when load demands increase.
This forward-looking approach minimizes initial capital expenditures while keeping expansion pathways straightforward. By choosing a Telecom Rectifier Power Module line with a long product lifecycle, facility managers ensure that future expansion modules will seamlessly integrate with the existing infrastructure, avoiding compatibility issues or early component obsolescence.
Selection Criterion | Technical Target for Telecom Rectifier Power Module Integration | Recommended Engineering Safety Margins |
Voltage Regulation Range | Must match nominal bus voltages precisely under dynamic load changes. | Static regulation accuracy within +/- 0.5% or better. |
Input Voltage Tolerance | Must tolerate local power quality fluctuations without dropping loads. | Extended input operating window from 85VAC up to 300VAC. |
Thermal Derating Limits | Maintains peak power delivery during extreme seasonal temperature peaks. | Zero capacity derating up to 55 degrees Celsius ambient temperature. |
Proper maintenance and troubleshooting of rectifier modules are essential to prevent unexpected down-time, ensure continuous thermal efficiency, and optimize system energy conversion performance over years of continuous operation. Implementing a structured maintenance checklist for each active Telecom Rectifier Power Module significantly reduces unexpected hardware failures and maximizes facility uptime.
A comprehensive maintenance routine for any industrial Telecom Rectifier Power Module focuses primarily on thermal management and cleanliness. Over months of continuous operation, internal cooling fans draw in ambient dust, which can accumulate on heatsinks and insulate critical switching components. Regular inspections should include clearing these paths to ensure the Telecom Rectifier Power Module operates within safe thermal limits and maintains optimal efficiency.
Electrical validation forms the second major pillar of effective field maintenance for a Telecom Rectifier Power Module system. Technicians should use calibrated thermal imaging cameras to inspect backplane connectors and terminal blocks for localized hot spots, which often indicate loose connections or increased contact resistance. Checking terminal torque settings and verifying balanced current sharing across all parallel Telecom Rectifier Power Module units prevents single units from carrying uneven load shares.
When unexpected faults occur, technicians must leverage the internal diagnostic codes provided by the Telecom Rectifier Power Module monitoring interface. Modern units provide distinct fault logs, categorizing alerts into input over-voltage, output overload, or internal over-temperature conditions. This precise diagnostic feedback allows field technicians to isolate faults quickly, replace affected modules without interrupting operations, and restore full system redundancy safely.
Diagnostic Condition | Root Cause Identification inside Telecom Rectifier Power Module Array | Corrective Field Action Plan |
Red Fault LED Illuminated | Output over-voltage or internal hardware failure within the specific Telecom Rectifier Power Module. | Extract the fault module, verify bus voltage parameters, and replace with a spare unit. |
Amber Status Indicator Blinking | The Telecom Rectifier Power Module is operating in thermal derating mode due to high ambient heat or airflow blockages. | Inspect internal cooling fans, clean accumulated dust from intakes, and check ambient room cooling. |
Unbalanced Current Sharing | Communication bus disconnect or calibration drift across parallel Telecom Rectifier Power Module systems. | Check CAN bus cable connections and verify uniform parameter programming via the controller interface. |
System Optimization Rule: Always ensure that individual Telecom Rectifier Power Module units running in parallel configuration are updated to identical firmware revisions. Unmatched firmware across a combined Telecom Rectifier Power Module system can lead to minor communication timing mismatches, disrupting current-sharing balance, lowering total conversion efficiency, and triggering false alarm signals within the central monitoring network. |
In conclusion, understanding the fundamental principles, key features, and selection criteria of a modern Telecom Rectifier Power Module is essential for designing resilient industrial power architectures. By prioritizing high energy efficiency, modular scalability, and robust remote monitoring capabilities, facility managers can build highly reliable systems that protect critical communication assets from grid instabilities. Adhering to structured preventative maintenance guidelines further ensures that each deployed Telecom Rectifier Power Module delivers optimal performance, minimizing total operational costs and securing continuous system availability over a long operational lifespan.
