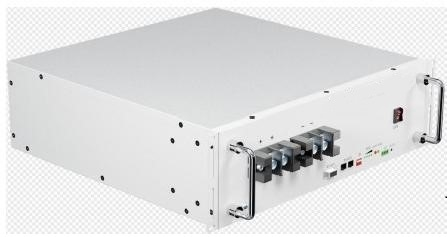

RXV-LFP4850 Battery

RXV-LFP4850 is a new type of intelligent battery pack developed by Vision.It is suitable for the installation of 19-inch cabinets.
RXV-LFP4850 has high-energy density,redundant safety design,long life,lightweight,easy installation, maintenance free,remote monitoring,etc.
● RS485 communication output for monitoring
● Built-in BMS with Charging current limitation
● Built-in automatic protection for over-charge,over-discharge and over-temperature conditions
● State of charge and state of health indication
● Built-in battery control for efficient operation
● Internal cell balancing
● Maintenance free

Quantity:
Availability:





Inquiry Add to Basket

Model:
RXV-LFP4850 Battery
Brand:
TexAi

Product Description

Datasheet

ltem RXV-LFP4850
General parameter	Nominal voltage	48V
	Nominal capacity(25℃,0.5C) 50Ah
	Nominal energy (25℃,0.5C)	2400Wh
	Weight 30±0.5Kg
	Cell positive material	LiFePO4
	Combination mode 15S1P
	Dimensions (WDH)	442mm440mm133mm
	Communication interface RS485
	IP rating	IP20
	Shell material Steel plate baking varnish
	Cycle life(0.5C,25℃)	4000 Cycles @80%DOD
	Design life(25℃) 12 years
	LED Display	Alarm/Run/SOC
Electrical parameter	Operating voltage 42V-54V
	Maximum charging current(25℃)	50A
	Maximum discharging current (25℃) 50A
	Standard charging current (25℃)	25A
	Standard discharging current (25℃) 25A
	Recommended charging voltage	54V
	Discharge cut-off voltage 42V
	Battery input protection	BMS
	Efficiency >98%
	Self discharge (25℃)	Less than 3%after 90 days storage
	Internal resistance <40mΩ
	Maximum number of parallels	16
	Protection function	Overvoltage protection,overcurrent protection,low-voltage protection, over temperature protection,low temperature protection,reverse connection protection,short circuit protection
Environment	Charging temperature	0~55℃
	Discharging temperature -20~55℃
	Storage temperature	-20℃~50℃
	Relative humidity 5%~95%(non condensing)

RXV-LFP4850 Battery Datasheet.pdf
