Connectivity Products List for EU Market

Externaldimension(mm)

360*173*97

Installationholeposition(mm)

344*138

Color

Black

Sizeandquantityofopticalcablehole

4cableentry

Fusioncapacity(Max)

36cores

TrayA,12x3=36,1layersof

heat-shrinkablesplice

protectionsleeve.

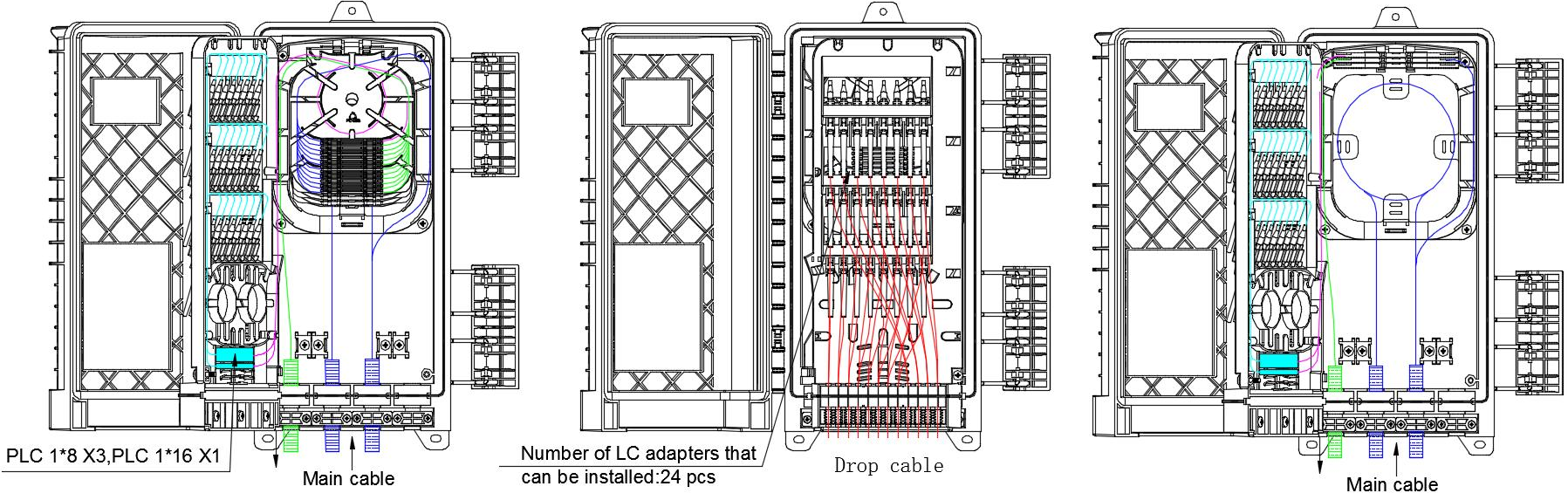

MicroPLCSplitter

3x1:8microsplitter

Splittersize：60x7x4mm.

1x1:16microsplitter

Splittersize：60x12x4mm.

Intothelargestcablediameter(mm)

ᴓ8~14

Cableoutletsize(mm)

2*3~ᴓ4

IPprotectionlevel

IP65

Flammability

HB(Conventional)

Canbecustomizedaccording

torequirements

Neutralsaltspraytest(NSS)

48h
