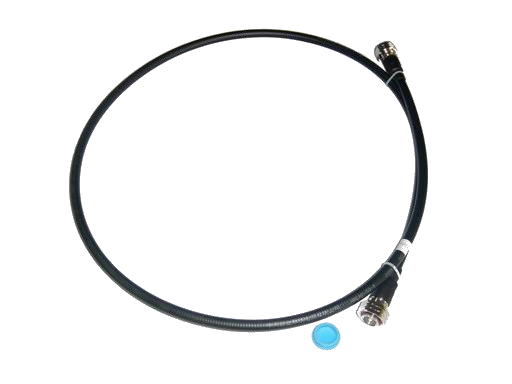

1/2”S Jumper Cable
TexAi
ConstructionofCable
Item
Diameter(mm)
Material
Innerconductor
3.60±0.05
Coppercladaluminumwire
Insulation
9.50±0.20
Foamedpolyethylene
Outercopperconductor
12.00±0.25
Helicalcorrugatedcoppertube
Jacket
13.30±0.20
Polyethylene
JumperCableCharacteristicChart
Characters
Specification
Cabletype
1/2”S(BlackPEjacket.)
Connectortype
Hexagonshape
Characteristicimpedance
50±2Ω
Insulationresistance
≥5000MΩ·km
Dielectricstrength
2000V(DC,1min)
Frequencyrange
0~5GHz
Minimumbendingradius
32mm(single)
InsertionLoss
DC-2.7GHz
≤0.21*L+0.2dB
VSWR
800~1000MHz
≤1.08
1700~3000MHz
≤1.10
PIM
@1800MHz≤-155dBc
