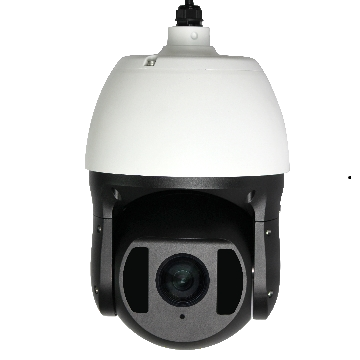

Ultra Series | RX-SD6A440H

Image Sensor

1/1.8” Progressive Scan 4MP CMOS

Minimum Illumination

Color:0.0005 Lux @ (F1.8, AGC ON); B/W:0.0001Lux   @ (F1.8, AGC ON)

Shutter

1/25s to 1/100,000s;   Support delayed shutter

Aperture

PIRIS

Day/Night Switch

ICR cut filter

Lens

Focal Length

6.4~256mm, 40x Optical Zoom

Aperture Range

F1.35-F4.6

Horizontal Field of View

61.28-2.06° (wide-tele)

Minimum Working Distance

100mm-1500mm (wide-tele)

Zoom Speed

Approximately 4.5s(optical, wide-tele)

Compression Standard

Video Compression

H.265 / H.264

H.265 Type

Main Profile

H.264 Type

BaseLine Profile / Main Profile / High Profile

Video Bitrate

32 Kbps~16Mbps

Audio Compression

G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM

Audio Bitrate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps( AAC)

Image（Maximum Resolution ：2688*1520）

Main Stream

50Hz: 25fps (2688×1520 ，1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (2688×1520 ，1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (704 x 576); 60Hz: 30fps (704 x 576)

Image Settings

Saturation, Brightness, Contrast and Sharpness   can be adjusted via the client-side or browse

BLC

Support

Exposure Mode

AE / Aperture Priority / Shutter Priority / Manual Exposure

Focus Mode

Auto Focus / One Focus / Manual Focus / Semi-Auto Focus

Area Exposure   / Focus

Support

Defog

Support

Day/Night Switch

Automatic, manual,   timing, alarm trigger

3D Noise Reduction

Support

Picture Overlay Switch

Support BMP 24-bit image overlay, customizable   area

Region of Interest

Support three streams and four fixed areas

Network

Storage Function

Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS   support)

Protocols

TCP/IP,ICMP,HTTP, HTTPS, FTP,DHCP,DNS, RTP, RTSP,RTCP, NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF(PROFILE S,PROFILE G)

PTZ

Pan Range

360° endless

Pan Speed

0.05°~300° /s

Tilt Range

-15°~90°

Tilt Speed

0.05°~200°/s

Number of Preset

255

Patrol

6 patrols, up to 18 presets per patrol

Pattern

4 , with the total recording time not less than 10 mins

Power loss recovery

Support

Infrared

IR distance

Up to 150m

IR intensity

Automatically adjusted, depending on the zoom ratio

Port

Audio I/O

1 input,1   output(optical)

Alarm I/O

1 input,1   output(optical)

General

Power

AC 24V, 50W(Max)

Working temperature

-40℃ -60℃

Humidity

90% or less

Protection level

Ip66, TVS 4000V Lightning protection, surge protection

Mount option

Wall Mounting, Ceiling Mounting
