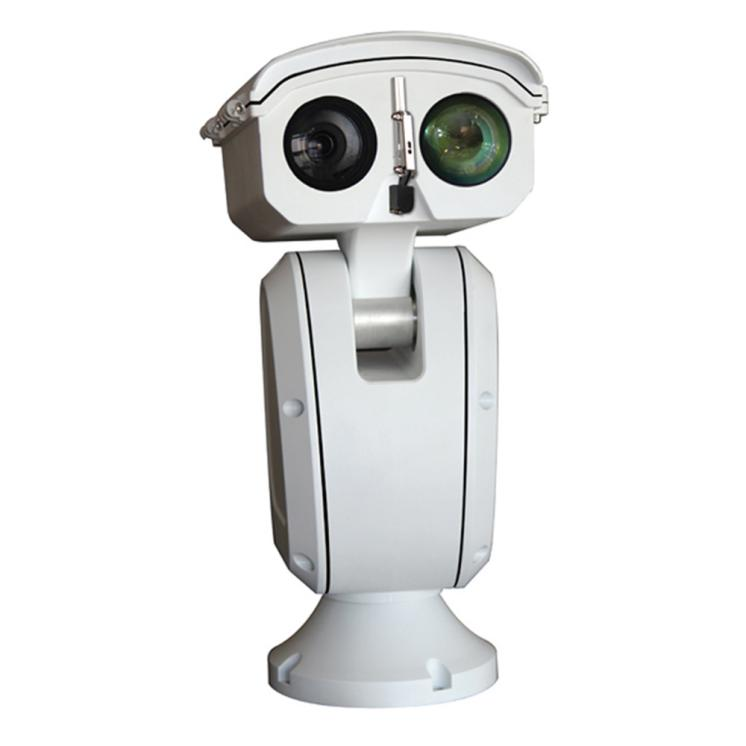

Ultra Series | PTZ camera RX-PTZ8A437-G

Image Sensor

1/1.8” Progressive Scan 4MP CMOS

Minimum Illumination

Color:0.0005Lux @ (F1.5,AGC ON); B/W:0.0001Lux @ (F1.5,AGC ON)

Shutter

1/25s to 1/100,000s；Supports delayed   shutter

Aperture

DC drive

Day/Night Switch

ICR cut filter

Digital zoom

16x

Lens

Focal Length

6.5-240mm ，37x Optical Zoom

Aperture Range

F1.5-F4.8

Field of View

H: 58.6-2.02°(wide-tele); V: 45.32-1.51°(wide-tele)

Minimum Working Distance

100mm-1000mm (wide-tele)

Zoom Speed

Approximately 3.5s (optical,   wide-tele)

Compression Standard

Video Compression

H.265 / H.264 / MJPEG

H.265 Type

Main Profile

H.264 Type

BaseLine Profile / Main Profile / High Profile

Video Bitrate

32 Kbps~16Mbps

Audio Compression

G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM

Audio Bitrate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps( AAC)

Image（Maximum Resolution ：2560*1440）

Main Stream

50Hz: 25fps (2560*1440 ，1920 × 1080, 1280 × 960, 1280 × 720);

60Hz: 30fps (2560*1440 ，1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (704 x 576); 60Hz: 30fps (704 x 576)

Image Settings

Saturation, Brightness, Contrast and Sharpness   can be adjusted via the client-side or browse

Exposure Mode

AE / Aperture Priority / Shutter Priority / Manual Exposure

Focus Mode

Auto Focus / One Focus / Manual Focus / Semi-Auto Focus

Area Exposure   / Focus

Support

Defog

Support

Image Stabilization

Support

Day/Night Switch

Automatic, manual,   timing, alarm trigger

3D Noise Reduction

Support

Picture Overlay Switch

Support BMP 24-bit image overlay, customizable   area

Region of Interest

Support three streams and four fixed areas

Network

Storage Function

Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support)

Protocols

TCP/IP,ICMP,HTTP, HTTPS, FTP,DHCP,DNS, RTP, RTSP,RTCP, NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF(PROFILE S,PROFILE G)

Smart Features

Smart Detection

Cross-border detection, area intrusion detection,   entering /leaving area detection, hovering detection, personnel   gathering detection, fast motion detection, parking    detection / take detection, scene   change detection, audio detection, virtual focus   detection,   face detection

Pan/Tilt

Pan Range

360° (endless)

Pan Speed

0.05°/s ~ 90°/s

Tilt Range

–82° ~ +58° (auto reverse)

Tilt Speed

0.1° ~ 9°/s

Infrared

IR Distance

Up to 800m

IR Intensity

Automatically adjusted, depending on the zoom ratio

Port

Audio I/O

1 input,1   output(optical)

Alarm I/O

1 input,1   output(optical)

General

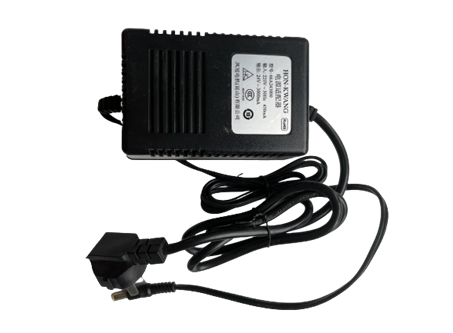

Power

AC24V voltage input ；  Power consumption ：≤72w；

Working Temperature

-40℃~60℃

Mounting

Mast mounting

Ingress Protection

Ip66

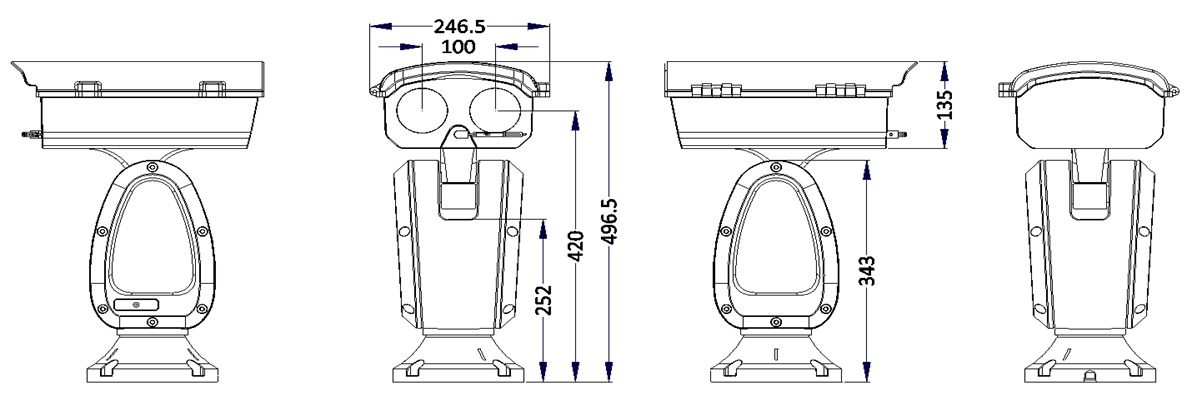

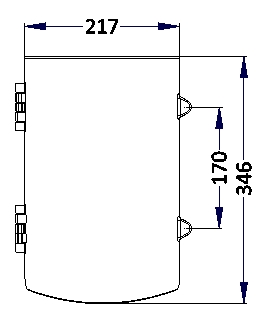

Dimension

4965 x 346

Weight

9.5 kg
