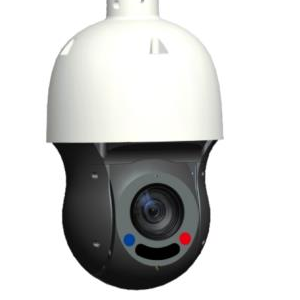

Lite Series | RX-SD5C433-H

Image Sensor

1/2.8” Progressive Scan 4MP CMOS

Min. Illumination

Color:0.001 Lux @(F1.5,AGC   ON);Black:0.0005Lux @(F1.5,AGC ON);

Shutter Time

1/25 to 1/100,000s

Day & Night

IR Cut Filter

Lens

Focal Length

5.5-180mm;33x optical zoom

Digital zoom

16x digital zoom

Aperture Range

F1.5-F4.0

Field of View

H: 57°(wide)-2.3° (tele);V:   32.6°(wide)-1.3° (tele)

Working Distance

100mm-1000mm (wide-tele)

Zoom Speed

Approx. 3.5s (optical lens, wide-tele)

Compression

Video Compression

H.265 / H.264 / MJPEG

Audio Compression

G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM


Resolution

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280   × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Image Setting

Corridor mode, saturation, brightness,   contrast and sharpness can be adjusted by client or browser

BLC

Support

Exposure Mode

Automatic exposure/aperture   priority/shutter priority/manual exposure

Focus Control

Auto focus/one-time focus/manual focus

Area Exposure/Focus

Support

Defog

Support

EIS

Support

Day &Night

Auto(ICR) / Color / B/W

3D Noise Reduction

Support

Image overlay

Support BMP 24 bit image overlay, optional   region

ROI

ROI supports one fixed region for each   three-bit stream

Network

Network Storage

Built-in memory card slot, support Micro   SD/SDHC/SDXC, up to 128 GB; NAS (NFS, SMB/ CIFS)

Protocol

ONVIF(PROFILE S,PROFILE G) ,GB28181-2016

PTZ

Pan Range

360° endless

Pan Speed

0.05°~120° /s

Tilt Range

-3°~93°

Tilt Speed

0.05°~120°/s

Number of Preset

255

Patrol

6 patrols, up to 18 presets per patrol

Pattern

4 , with the total recording time not less   than 10 mins

Power loss recovery

Support

Infrared

IR distance

Up to 150m

IR intensity

Automatically adjusted, depending on the   zoom ratio

Port

Audio I/O

1 input,1 output(optical)

Alarm I/O

1 input,1 output(optical)

General

Power

AC 24V, 36W(Max)

Working temperature

-40℃ -60℃

Humidity

90% or less

Protection level

Ip66, TVS 4000V Lightning protection, surge   protection

Mount option

Wall Mounting, Ceiling Mounting

Weight

3.5kg
