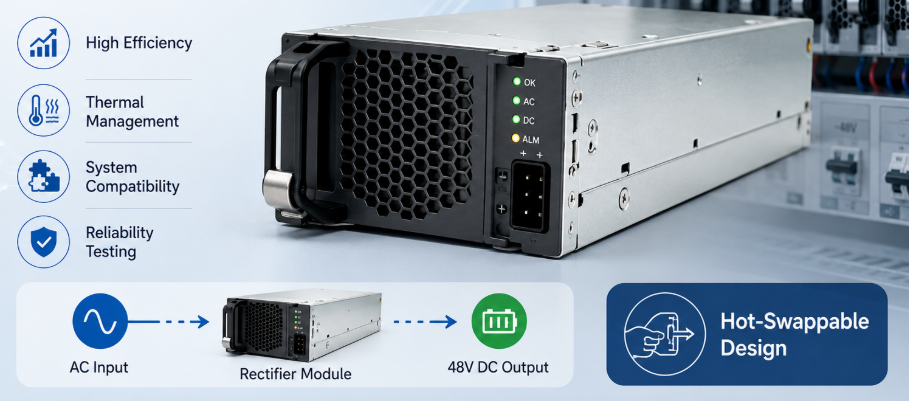

Selecting the ideal rectifier module for a power conversion system requires a precise evaluation of electrical parameters, environmental constraints, and system compatibility to achieve optimal efficiency and long-term reliability. A high-performance Telecom Rectifier Power Module must balance voltage and current ratings, thermal management efficiency, and total cost of ownership to ensure uninterrupted power delivery in critical industrial and telecommunications infrastructure.
Understanding rectifier modules
Criteria for selecting a rectifier module
Types of rectifier modules
Evaluating and testing rectifier modules
A rectifier module is an essential electronic component designed to convert alternating current (AC) into direct current (DC), serving as the foundational power processing stage for sensitive electronic equipment and industrial machinery.
At its core, a rectifier module utilizes semiconductor devices to restrict the flow of electrical current to a single direction. This process effectively transforms the bidirectional oscillating voltage of an AC source into a continuous, unidirectional DC output voltage. Modern modules integrate advanced filtering and power factor correction circuits to minimize ripple voltage and deliver clean, stable power.
The conversion efficiency of these modules directly impacts the overall energy consumption of the host system. By deploying high-grade silicon or wide-bandgap semiconductor materials, engineering teams can minimize internal power dissipation. This ensures that the conversion from high-voltage AC utility power to low-voltage DC operating power occurs with minimal thermal energy losses.
Furthermore, contemporary industrial rectifiers often feature digital control interfaces. These subsystems allow for real-time monitoring of electrical parameters, remote configuration changes, and automated fault detection, which collectively enhance the operational lifespan of the entire power distribution network.
Within a comprehensive power conversion system, the rectifier module acts as the primary gatekeeper of electrical energy. It accepts raw utility or generator power and refines it into a reliable DC bus voltage, which subsequently feeds downstream inverters, DC-DC converters, and energy storage banks.
Without a highly stable rectification stage, downstream components would be exposed to voltage fluctuations, line noise, and harmonic distortions present in the primary grid. The rectifier module isolates sensitive digital loads from these anomalies, ensuring consistent system performance under varying grid conditions.
In critical infrastructure setups, multiple rectifier units are configured in parallel configurations to establish redundancy. This architecture guarantees that if an individual module experiences a hardware fault, the remaining units instantly absorb the load demand without disrupting the continuous operation of the connected infrastructure.
Rectifier modules are deployed extensively across global industries, ranging from heavy manufacturing facilities to advanced telecommunications networks. In industrial automation, they supply the precise DC voltage required to drive variable speed motors, robotic arms, and programmable logic controllers.
In the renewable energy sector, these modules are integral to wind and solar power conditioning systems, enabling efficient energy transfer between generating assets and storage systems. They ensure that the variable electrical outputs generated by alternative sources are properly adapted for battery charging and grid synchronization.
The telecommunications sector represents one of the most demanding applications for these components. Telecom infrastructure relies heavily on highly efficient, ultra-reliable DC power architectures to support continuous data transmission. Utilizing a premium Telecom Rectifier Power Module allows network operators to maintain optimal network uptime while reducing energy dissipation within dense server enclosures and remote base stations.
Industry Sector | Primary Rectifier Function | Typical Voltage Requirements |
Telecommunications | Continuous DC backup and cellular base station supply | 48V DC to 54V DC |
Industrial Automation | Motor drives, PLC control systems, and robotics | 24V DC to 600V DC |
Renewable Energy | Energy storage charging and grid integration | Variable DC bus up to 1000V DC |
Transportation | Electric vehicle charging infrastructure and rail power | 400V DC to 800V DC |
Selecting the correct rectifier module requires a rigorous technical evaluation of electrical capacity, environmental tolerances, conversion efficiencies, and thermal dissipation mechanisms to ensure full alignment with systemic operational goals.
The primary parameters for selecting any rectification component are the nominal and peak input AC voltages, alongside the desired output DC voltage and current capacities. Engineers must calculate the maximum continuous current demand of the load while factoring in potential inrush currents during system startup.
Operating a module too close to its maximum rated limits can accelerate component degradation and lead to premature thermal breakdown. Conversely, over-specifying the module leads to unnecessary capital expenditure and can result in reduced efficiency, as many power modules are optimized to perform best within specific load windows.
It is critical to analyze the input voltage tolerance of the module. A wide input voltage range allows the system to remain functional during grid sags, surges, and brownout conditions, protecting the downstream load from unexpected shutdowns.
Energy efficiency is a dominant factor in modern system design, directly influencing both operational expenditures and cooling requirements. High-efficiency modules utilize synchronous rectification and advanced topologies to minimize the voltage drop across internal semiconductor junctions.
When evaluating power losses, engineers must analyze the efficiency curve across the entire intended operating profile, rather than focusing solely on peak efficiency metrics. A module that exhibits 96% efficiency at half-load may drop significantly under light-load or full-load scenarios, impacting long-term energy calculations.
Investing in high-efficiency hardware lowers total energy consumption and decreases the physical size of the required cooling infrastructure. Reduced thermal dissipation means fewer cooling fans or smaller heatsinks are needed, directly improving system reliability.
Every watt of energy lost during the rectification process is converted into thermal energy, which must be effectively dissipated away from sensitive internal components. Selecting a module involves evaluating its thermal resistance and matching it with an appropriate cooling method, such as natural convection, forced air cooling, or liquid cooling systems.
The operating temperature range specified by the manufacturer must align with the environmental conditions of the installation site. For instance, systems deployed in outdoor telecom enclosures face elevated ambient temperatures that necessitate modules with robust thermal derating characteristics.
Advanced modules incorporate internal temperature sensors that communicate with the central management system. This feature enables proactive thermal throttling, reducing output capacity temporarily if internal temperatures exceed safe operating limits, thereby preventing catastrophic hardware destruction.
A replacement or new-installation rectifier must integrate seamlessly into the pre-existing mechanical and electrical architecture of the power conversion system. This encompasses physical dimensions, mounting configurations, electrical connection types, and digital communication protocols.
Modern industrial ecosystems favor standard form factors, such as 1U or 2U rack-mountable modules, which allow for rapid hot-swapping during maintenance cycles. Hot-swappability ensures that faulty units can be replaced without powering down the entire system, maintaining continuous operations.
From a digital perspective, the module should support standard industry protocols like PMBus, CAN bus, or Modbus. This compatibility ensures that central controller units can accurately monitor parameters, adjust output voltages, and log diagnostic faults without requiring proprietary software bridges.
Long-term dependability is evaluated using metrics such as Mean Time Between Failures (MTBF) and the quality of internal components, particularly capacitors and semiconductor switches. Modules destined for critical infrastructure must feature high MTBF values under realistic operating conditions.
Environmental protection is another critical facet of durability. Modules operating in harsh conditions require conformal coatings on printed circuit boards to protect against moisture ingress, dust accumulation, and chemical contaminants that can cause electrical short-circuiting.
Furthermore, built-in protection mechanisms against over-voltage, under-voltage, over-current, and short-circuit conditions are vital. These safety features protect the rectifier itself and serve as a shield for the valuable downstream electronic equipment.
While initial purchase price is an important variable, an experienced procurement professional evaluates the total cost of ownership (TCO). TCO accounts for the acquisition cost, installation expenses, energy consumption costs over the product lifecycle, and maintenance or replacement frequencies.
Choosing a less expensive, lower-efficiency module frequently results in higher overall costs due to increased utility expenses and a shorter operational lifespan. High-efficiency units, although requiring a larger initial capital outlay, generally yield significant financial savings through reduced energy billing and minimal maintenance over their deployment lifecycle.
Moreover, utilizing modular designs minimizes the cost of spare parts inventory. Instead of stocking multiple unique standalone power supplies, an organization can maintain a small inventory of universal rectifier modules to service an entire fleet of power conversion systems.
Selection Metric | Key Engineering Evaluation Factor | System Impact |
Rated Input Voltage | Maximum continuous AC voltage and transient tolerances | Grid fault resilience and component safety |
Conversion Efficiency | Percentage of input power successfully converted to usable DC | Operational energy costs and heat generation |
Thermal Dissipation | Heat transfer coefficient and cooling medium requirements | System lifespan and cooling infrastructure costs |
Physical Form Factor | Mechanical dimensions, mounting footprint, and weight | Installation density and maintenance accessibility |
Communication Interface | Supported digital protocols (PMBus, CAN bus, Modbus) | Remote monitoring and automated system control |
Rectifier modules are categorized based on their underlying semiconductor components, the phases of the input power supply, and the structural configuration of the system, with each type optimized for distinct electrical demands.
Diode-based rectifier modules represent the most straightforward and traditional form of power rectification. Utilizing the natural p-n junction properties of diodes, these modules allow current to pass exclusively when the anode is positively biased relative to the cathode, resulting in an uncontrolled DC output.
High Reliability: Because diodes are passive semiconductor devices lacking complex gate control circuitry, they exhibit high structural reliability and low failure rates over extended deployment lifespans.
Cost-Effective Design: The mechanical and electrical simplicity of diode configurations translates directly into lower manufacturing costs, making them highly economical for standard power applications.
Low Control Requirements: Operating without external control signals, these modules require no complex digital programming or continuous monitoring loops to execute basic rectification.
However, the lack of output regulation means that any fluctuations in the incoming AC source are directly reflected in the output DC voltage, requiring substantial downstream filtering.
Thyristor or Silicon Controlled Rectifier (SCR) modules introduce control capabilities into the rectification process. Unlike passive diodes, a thyristor remains non-conductive until a specific control pulse is delivered to its gate terminal, allowing engineers to regulate the exact timing of conduction.
By adjusting the firing angle of the gate pulse relative to the AC phase angle, the system can precisely vary the average value of the output DC voltage. This characteristic makes thyristor-based modules highly suitable for high-power applications such as industrial motor drives, electrochemical processes, and high-voltage DC (HVDC) transmission systems.
The control circuitry required for thyristors adds complexity and introduces higher levels of harmonic distortion into the primary AC supply grid, often necessitating the installation of active harmonic filters.
The distinction between controlled and uncontrolled rectifiers hinges on the type of semiconductor components utilized within the module design. Uncontrolled modules rely entirely on diodes, delivering a fixed output voltage directly tied to the input source amplitude.
Controlled rectifiers utilize thyristors, MOSFETs, or IGBTs to actively modulate the electrical output. This active control allows the system to maintain a constant, rock-solid DC output voltage even when the input AC grid experiences significant voltage fluctuations or when the load demand changes dynamically.
For high-density networking environments, active controlled systems are mandatory. Implementing a premium telecom power supply module ensures that delicate communication processing hardware receives uniform, uninterrupted voltage, mitigating data corruption risks caused by electrical sags.
The choice between single-phase and three-phase configurations is dictated by the total power demand of the system and the type of electrical utility infrastructure available at the installation site.
Single-phase rectifiers are typically utilized for low-to-medium power applications, common in residential and light commercial settings. They process a single sinusoidal AC input, which inherently results in a higher output ripple frequency that requires extensive capacitive filtering to smooth into a clean DC line.
Three-phase rectifiers are the standard choice for heavy industrial environments and high-capacity data centers. By processing three separate AC voltage phases offset by 120 degrees, they deliver a highly uniform DC output with significantly lower baseline ripple voltage. This multi-phase interaction maximizes efficiency and balances the load evenly across the primary electrical grid.
Integrated rectifier systems consist of a single, self-contained power block designed to handle a fixed electrical load. While highly robust and compact, scaling or repairing an integrated system requires taking the power unit offline, which can disrupt connected operations.
Modular systems utilize a scalable architecture where multiple independent rectifier units slide into a shared mechanical chassis. This framework allows for N+1 or N+2 parallel redundancy configurations, where extra modules are kept online to instantly replace any failing unit.
This modularity enables operators to scale power capacity incrementally as operational demands increase. Furthermore, the ability to perform hot-swapping eliminates maintenance downtime, ensuring that critical data hubs, automated production lines, and communications arrays remain operational during component replacements.
Operational Principle of Synchronous Rectification: In high-efficiency controlled rectifiers, traditional diodes are replaced with active power MOSFET switches. Internal control circuitry turns these MOSFETs on and off in precise synchronization with the alternating current waveform. Because an energized MOSFET exhibits an exceptionally low channel resistance compared to the fixed forward voltage drop of a standard diode, internal conductive power dissipation is reduced by up to 70%. This technological integration allows high-density rectifier modules to achieve conversion efficiencies exceeding 96%, lowering thermal emissions and reducing the total energy fingerprint of industrial systems.
Rigorous evaluation and empirical testing of rectifier modules are crucial validation steps required to confirm that the chosen power equipment meets all structural safety standards and performance specifications prior to site integration.
Prior to commissioning a rectifier system, engineering teams perform functional validation tests under controlled laboratory conditions. These evaluations involve testing the module across its full spectrum of thermal and electrical limits, ensuring it performs reliably during regular operations and grid anomalies.
Efficiency testing requires high-precision power analyzers to monitor the exact difference between input AC power consumption and output DC power delivery across multiple load thresholds. This diagnostic data maps the efficiency profile of the module, confirming its operational viability.
Environmental stress testing involves placing the module within specialized environmental chambers to evaluate performance under extreme temperatures, high humidity levels, and intense vibrational stresses. This rigorous testing phase confirms that the internal component layout and chassis engineering can withstand severe field conditions without suffering mechanical degradation or electrical isolation failures.
To maximize safety and maintain stable power distribution, deploying a highly integrated, digitally managed 1U industrial power rectifier allows operations teams to leverage built-in diagnostic routines, simplifying field commissioning and ensuring safe operation over decades of service.
Evaluation Test Type | Testing Methodology | Intended Success Outcome |
Dielectric Withstand (Hi-Pot) | Application of high voltage between circuit traces and chassis ground | Verification of insulation integrity and prevention of short circuits |
Dynamic Load Response | Rapid step-changes in current demand (e.g., 10% to 90% load) | Measurement of voltage transient response and recovery stability |
Harmonic Distortion Analysis | Evaluation of input current waveforms using Fast Fourier Transform | Compliance with grid harmonics standards to prevent line noise |
In summary, selecting the optimal rectifier module for a power conversion system is a comprehensive engineering task that directly influences the operational efficiency, stability, and financial viability of industrial infrastructure. By thoroughly understanding the fundamental operation of rectifier modules, defining precise selection criteria, selecting the correct structural type, and implementing testing protocols, organizations can secure an enduring power architecture. Utilizing high-efficiency, digitally controlled modular rectifiers protects down-line hardware assets, minimizes system energy expenditures, and ensures continuous, high-performance operations across all industrial landscapes.
