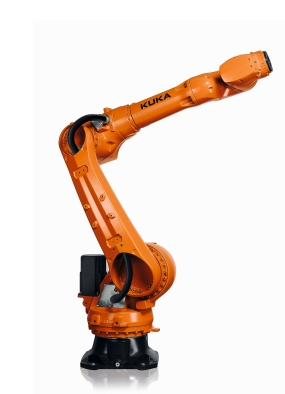

Robotic KR50 R2100

Name: Robotic KR50 R2100
Brand: kuka
Rating: 5.0 (41 reviews)

1.Advantages of KUKA 50R2100

KR 50R2100 the robot for every task in the medium-payload range An all-in-one solution. With the KR 50R2100 ,you are opting for pure performance and the largest work envelope in the medium payload category.Maximum dynamics and minimum cycle times.Perfection in every installation position. In the future, you will master all tasks with just ine robot.

Highlights of the KR50R2100

· Utmost flexibility during the life cycle
· Sustaunably cost-efficient
· Performance redefined

Quantity:
Availability:





Inquiry Add to Basket

Model:
Robotic KR50 R2100
Brand:
kuka

Product Description

Datasheet

Technical data
Maximum reach,	2101 mm
Rated payload	50kg
Maximum payload	61 kg
Maximum supplementary load rotating /link arm/arm	50 kg / 30 kg / 30 kg
nPose repeatability(lSO 9283)	±0.05 mm
Number of axes	6
Mounting position	Floor. Ceiling; Wall; Desired angle
Footprint	603 mm x 480 mm
Weight	approx.533 kg
Motion range
A1	±185º
A2	-175/60º
A3	-120º/ 165º
A4	±180º
A5	±125º
A6	±350º
Speed with rated payload
A1	180º/s
A2	175°/s
A3	175º/s
A4	250º/s
A5	250º/s
A6	360º/s
Operating conditions
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Protection rating
Protection rating (IEC 60529)	IP65
Protection rating, robot wrist (IEC60529)	IP65/IP67
Protection class of the mechanical arm of the robot (IEC 60529)	IP65/IP67
Controller
Controller	KR C5;KR C4

KR50 R2100.pdf
