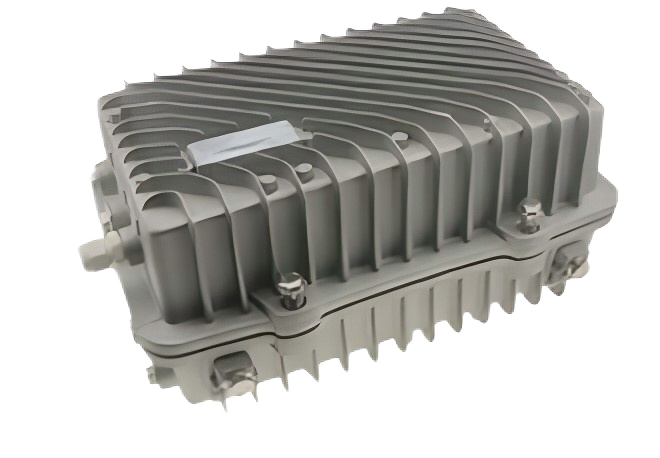

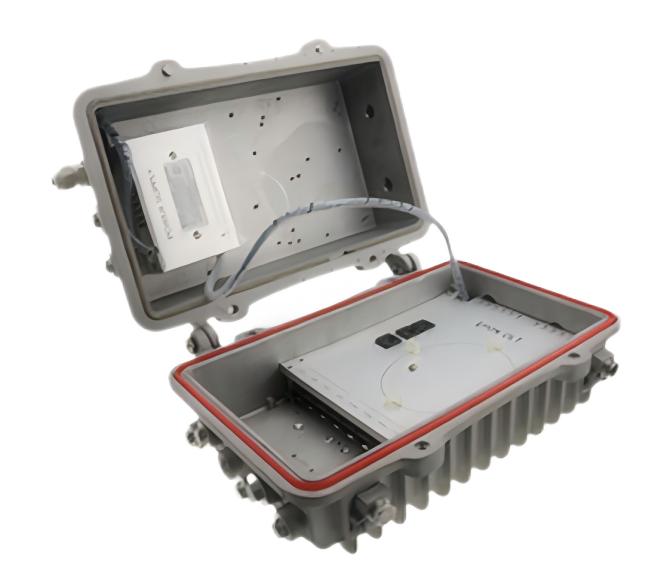

RXGL7317 is a single-PON port outdoor waterproof GPON OLT, it has strong performance, but price is very good. The PON port splitting ratio is 1:128, and the longest transmission distance can reach 20KM, its upper and lower bandwidth is as high as 1.25Gbps/2.5Gbps. Waterproof is up to IP65. Its modular design allows for flexible deployment in ground boxes, corridors, utility poles, and other scenarios, simplifying network design and reducing engineering costs.
◆ Supports IP65 dustproof and waterproof rating. ◆ The splitting ratio reaches 1:128, which can meet the access needs of a community or a building. ◆ Providing high transmission power WIFI not only allows customers to conveniently manage their devices wirelessly, but also facilitates the deployment of commercial WIFI. This greatly facilitates the installation and maintenance of equipment for customers, while also expanding the application scenarios of the equipment. ◆ Supports multiple upstream modes such as Ethernet GE/10GE or GPON/XG (S) - PON, adapting to various application scenarios and facilitating timely and rapid deployment for customers. Convenient network design for customers, reducing network modifications. ◆ Optional support for POE, used to connect external surveillance cameras, commercial WIFI APs, etc.
Operating voltage range: AC 100~240V, rated voltage: 110V/220V
POE function (optional)
GE ports support PoE power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
It complies with the IEEE 802.3af/at PoE power supply standard, and the maximum PoE output power of the whole machine is up to 30W.
Automatically identify PoE devices for power supply without damaging non-PoE devices.
Dimension
31CM*23CM*15CM
Software Features
Management features
• Telnet,CLI,WEB,SNMP;
• Port status monitoring and configuration management
• Online ONT configuration and management
• User management
• Alarm management
Layer 2 switching function
• 1K Mac address
• Supports 4096 VLANs
• Supports Port VLANs
• Supports VLAN tag/Un-tag and VLAN transparent transmission
• Supports VLAN translation, QinQ and P2P
• Supports for port-based storm control
• Supports port isolation
• Supports port rate limiting
• Supports 802.1D and 802.1W
• Access control lists
• IEEE802.x flow control
• Port stability statistics and monitoring
Multicast
• Supports IGMP Snooping
• Supports 256 IP multicast groups
DHCP
• Supports DHCP server,DHCP relay,DHCP snooping
• Supports DHCP option82
• Supports DHCPv6 server,DHCPv6 relay
GPON features
• Tcont DBA
• Gemport traffic
• Meet ITU-T 984.x compliant
• The transmission distance can reach 20KM
• Supports data encryption, multicast, port VLAN, separation, etc
• Supports ONT automatic discovery/link detection/remote software upgrade
• Supports VLAN division and user separation to avoid broadcast storms
• Supports Power failure alarm function to facilitate the detection of link problems
