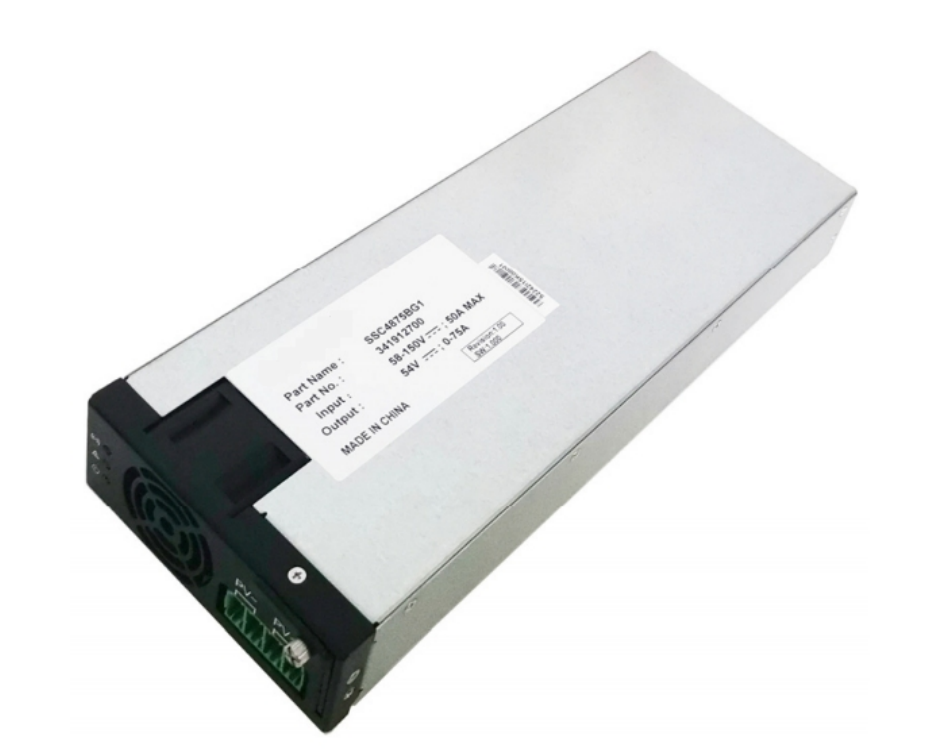

Rectifier SSC4850BG1
TexAi
The Rectifier SSC4850BG1, developed by Chinese manufacturer TexAi (a brand under Beijing Ruixiao Technology Co., Ltd.), is a high-performance power module engineered for critical infrastructure. With a rated output voltage of 54V and a maximum power capacity of 3000 Watts, this module stands out for its exceptional efficiency of up to 96%, making it a reliable choice for energy-sensitive applications.
Designed as a core component in telecommunication power systems, the SSC4850BG1 offers remarkable flexibility—it can operate as a standalone unit or integrate seamlessly into larger systems. Its robust construction and advanced features make it ideal for demanding environments across multiple industries, ensuring stable power supply even in extreme conditions.
Parameter | Details |
Model | Rectifier SSC4850BG1 |
Input Voltage Range | 58Vdc-150Vdc |
Rated Input Voltage | 125Vdc |
Maximum Input Voltage | 150Vdc |
Maximum Input Current | 50A |
Inrush Current | ≤150% of steady-state peak at rated input voltage |
Peak Efficiency | >96% (tested at 25℃, 125Vdc input, 54Vdc output) |
Parameter | Details |
Output Voltage Range | 42Vdc (min) - 58Vdc (max) (typical 54Vdc) |
Output Current | 55.6A @ 54Vdc |
Output Regulation | -0.5% to 0.5% |
Maximum Output Power | 3000W |
Current Limit (Max) | 56.5A |
Output Noise (Peak-to-Peak) | <200 mV (20MHz bandwidth) |
Psophometric Noise | <2 mV |
Dynamic Response | ≤5% |
Start-up Time | <10s |
Load Sharing Accuracy | -5% to 5% |
Parameter | Min | Typ | Max | Unit | Notes |
Over Temperature Protection | - | - | 75 | ℃ | Module shuts down when exceeded |
Input Over Voltage Protection | - | 155 | - | Vdc | Module shuts down when exceeded |
Input Under Voltage Protection | - | 56 | - | Vdc | Module shuts down when exceeded |
Output Over Voltage Protection | - | 59 | - | Vdc | - |
Short Circuit Protection | - | - | - | - | No damage during long-term short circuits |
Parameter | Min | Typ | Max | Unit | Notes |
Storage Temperature | -40 | - | 85 | ℃ | - |
Operating Temperature | -40 | - | 75 | ℃ | Full load from -40℃ to 55℃; derated from 55℃ to 75℃ |
Humidity | 5 | - | 90 | % | Non-condensing |
Altitude | -100 | - | 2000 | m | Derated for altitudes above 2000m |
MTBF (Mean Time Between Failures) | 300,000 | - | - | hours | - |
Insulation Resistance | 20 | - | - | MΩ | Input to Enclosure; Input to Output |
Dielectric Strength | - | - | 707 | Vdc | Input to Enclosure; Output to Enclosure |
Cooling Method | Horizontal forced air cooling | - | |||
Audible Noise | - | - | 55 | dBA | - |
Light Color | Status Description |
Green (Running) | Constant: Normal operation; Flashing: Normal operation with controller communication |
Yellow (Warning) | Constant: Derating due to input voltage or temperature changes |
Red (Fault) | Constant: EEPROM fault, input/output voltage faults, over-temperature, or communication failures; Flashing: Fan fault |
· Electromagnetic Compatibility: EN55032 (Class A), EN61000-3-2, EN61000-3-3, EN61000-4-2 to EN61000-4-11
· Mechanical Stress: IEC60068-2-27 (Shock), IEC60068-2-64 (Vibration)
· 1U Industrial Design: Compact form factor for easy integration into standard racks, saving space in telecom cabinets and power rooms.
· Wide Solar Input Range: Accepts 58Vdc-150Vdc, making it compatible with various solar power setups and ensuring flexibility in renewable energy integration.
· Ultra-High Efficiency: Exceeds 96% under rated conditions, reducing energy loss and operational costs for long-term savings.
· Extreme Temperature Tolerance: Operates reliably from -40℃ to +75℃, suitable for harsh environments in remote or industrial areas.
· Active Load Sharing: Ensures balanced power distribution when multiple modules are used in parallel, enhancing system stability.
· Advanced Internal Monitoring: Real-time tracking of voltage, current, and temperature, with instant alerts via indicator lights.
· MPPT (Maximum Power Point Tracking): Optimizes energy harvest from solar inputs, maximizing power output in variable light conditions.
The Rectifier SSC4850BG1 is engineered to meet the rigorous demands of critical infrastructure, with key applications including:
· Telecommunication Networks: Powers base stations, data centers, and transmission equipment, ensuring uninterrupted connectivity.
· Broadband Networks: Supports high-speed internet infrastructure, maintaining stable power for routers and network hubs.
· Broadcasting and Railway Networks: Reliable power for broadcast towers, railway signaling systems, and communication links in transit networks.
· Enterprise Networks: Ideal for data centers, server rooms, and on-premise IT infrastructure, where consistent power is critical for operations.
Whether deployed as a standalone unit or part of a larger power system, the Rectifier SSC4850BG1 delivers unmatched performance, durability, and efficiency for mission-critical applications.
