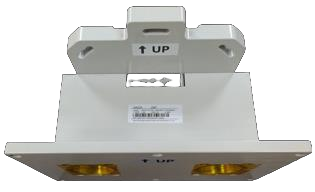

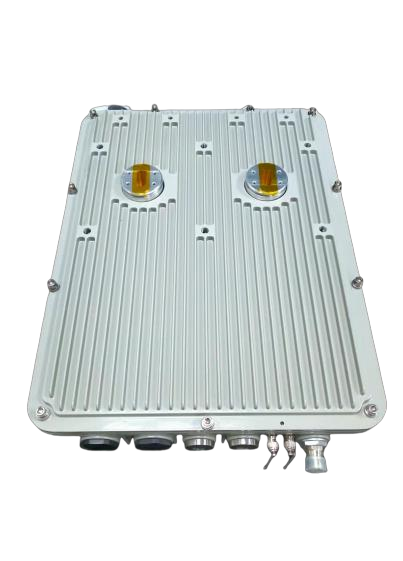

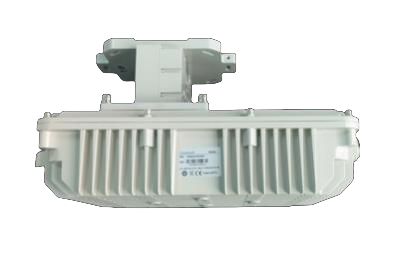

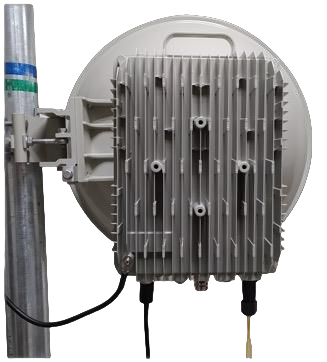

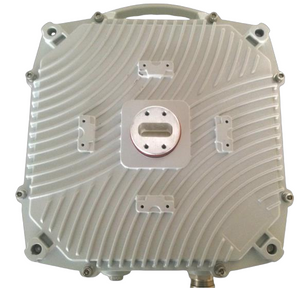

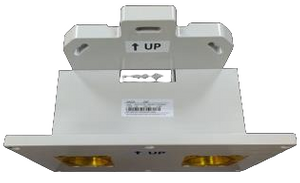

RXWU4022B Full-outdoor Packet Radio

RXWU4022B Full-outdoor Packet Radio

1.Zero footprint, fully outdoor and cost-effective solution
2.QoS (Quality of Service) based on port, VLAN ID/Priority, DSCP for traffic prioritization
3.Scalable bandwidths (ETSI up to 112 MHz, FCC up to 80MHz ) and flexible modulation schemes (QPSK-4096QAM) to secure best link performance
4. Advanced multilevel LDPC and RS FEC
5.Up to 4Gbps capacity with Hitless Automatic Adaptive Coding and Modulation (HAACM)
6. The capacity can be up to 8Gbps by 2-radios aggregation
7. Power supply with coaxial cable or 2-wire cable
8. Multi-GE ports with 2-10 Gb
9. High availability and reliability based on licensed frequencies 5~44G
10. Jumbo frame up to 10240 bytes
11.Layer-2 switching, auto MDI/MDXI, VLAN, QoS, QinQ, STP/RSTP, LACP
12. 16K Mac Table Entries
13. Adaptive digital Pre-distortion feature
14. ATPC and built-in FEC function
15. Built-in Bit Error Rate (BER) monitoring and spectrum scan
16. Small and attractive profile, Low latency and low power consumption, wide operating temperature range fits all weather conditions
17. Management capability as well as SNMP
18. Support Local and Remote loopback for Line checking
19. System Log for alarm, events, configuration.

Quantity:
Availability:





Inquiry Add to Basket

Model:
RXWU4022B Full-outdoor Packet Radio
Brand:
TexAi

Product Description

Datasheet

Frequency				6.5GHz	7GHz	8GHz	11 GHz	13 GHz	15 GHz	18 GHz	23 GHz	32GHz
Standard				ETSI/ITU or customer specified
RF Output Power/per channel (dBm-Max)			4096QAM	20	19	19	19	18	18	17	17	15
			2048QAM	20	19	19	19	18	18	17	17	15
			1024QAM	21	20	20	20	19	19	18	18	16
			512QAM	21	20	20	20	19	19	18	18	16
			256QAM	21	20	20	20	19	19	18	18	16
			128QAM	21	20	20	20	19	19	18	18	16
			64QAM	22	21	21	21	20	20	19	19	17
			32QAM	22	21	21	21	20	20	19	19	17
			16QAM	22	21	21	21	20	20	19	19	17
			QPSK	22	21	21	21	20	20	19	19	17
RF Output Power(dBm- Min)				0
Tuning Increment (dB)				1
Accuracy (dB)				±2
RX at BER=10-6 (dBm)	112MHz	4096QAM		-49.1	N/A	-49.1	-48.6	-48.6	-48.6	-48.1	-48.1	-48.1
		2048QAM		-53.0	N/A	-53.0	-52.5	-52.5	-52.5	-52.0	-52.0	-52.0
		1024QAM		-56.1	N/A	-56.1	-55.6	-55.6	-55.6	-55.1	-55.1	-55.1
		512QAM		-59.3	N/A	-59.3	-58.8	-58.8	-58.8	-58.3	-58.3	-58.3
		256QAM		-62.3	N/A	-62.3	-61.8	-61.8	-61.8	-61.3	-61.3	-61.3
		128QAM		-65.4	N/A	-65.4	-64.9	-64.9	-64.9	-64.4	-64.4	-64.4
		64QAM		-68.3	N/A	-68.3	-67.8	-67.8	-67.8	-67.3	-67.3	-67.3
		32QAM		-70.6	N/A	-70.6	-70.1	-70.1	-70.1	-69.6	-69.6	-69.6
		16QAM		-73.7	N/A	-73.7	-73.2	-73.2	-73.2	-72.7	-72.7	-72.7
		QPSK		-80.1	N/A	-80.1	-79.6	-79.6	-79.6	-79.1	-79.1	-79.1
	80MHz	4096QAM		-50.5	N/A	-50.5	-50.0	-50.0	-50.0	-49.5	-49.5	-49.5
		2048QAM		-54.4	N/A	-54.4	-53.9	-53.9	-53.9	-53.4	-53.4	-53.4
		1024QAM		-57.6	N/A	-57.6	-57.1	-57.1	-57.1	-56.6	-56.6	-56.6
		512QAM		-60.7	N/A	-60.7	-60.2	-60.2	-60.2	-59.7	-59.7	-59.7
		256QAM		-63.8	N/A	-63.8	-63.3	-63.3	-63.3	-62.8	-62.8	-62.8
		128QAM		-66.9	N/A	-66.9	-66.4	-66.4	-66.4	-65.9	-65.9	-65.9
		64QAM		-69.7	N/A	-69.7	-69.2	-69.2	-69.2	-68.7	-68.7	-68.7
		32QAM		-72.1	N/A	-72.1	-71.6	-71.6	-71.6	-71.1	-71.1	-71.1
		16QAM		-75.2	N/A	-75.2	-74.7	-74.7	-74.7	-74.2	-74.2	-74.2
		QPSK		-81.7	N/A	-81.7	-81.2	-81.2	-81.2	-80.2	-80.2	-80.2
	56MHz	4096QAM		-51.9	-51.9	-51.9	-51.4	-51.4	-51.4	-50.9	-50.9	-50.9
		2048QAM		-55.8	-55.8	-55.8	-55.3	-55.3	-55.3	-54.8	-54.8	-54.8
		1024QAM		-59.1	-59.1	-59.1	-58.6	-58.6	-58.6	-58.1	-58.1	-58.1
		512QAM		-62.3	-62.3	-62.3	-61.8	-61.8	-61.8	-61.3	-61.3	-61.3
		256QAM		-65.4	-65.4	-65.4	-64.9	-64.9	-64.9	-64.4	-64.4	-64.4
		128QAM		-68.4	-68.4	-68.4	-67.9	-67.9	-67.9	-67.4	-67.4	-67.4
		64QAM		-71.2	-71.2	-71.2	-70.7	-70.7	-70.7	-70.3	-70.3	-70.3
		32QAM		-73.7	-73.7	-73.7	-73.2	-73.2	-73.2	-72.7	-72.7	-72.7
		16QAM		-76.8	-76.8	-76.8	-76.3	-76.3	-76.3	-75.8	-75.8	-75.8
		QPSK		-83.2	-83.2	-83.2	-82.7	-82.7	-82.7	-82.2	-82.2	-82.2
	40MHz	4096QAM		-53.3	-53.3	-53.3	-52.8	-52.8	-52.8	-52.3	-52.3	-52.3
		2048QAM		-57.2	-57.2	-57.2	-56.7	-56.7	-56.7	-56.2	-56.2	-56.2
		1024QAM		-60.6	-60.6	-60.6	-60.1	-60.1	-60.1	-59.6	-59.6	-59.6
		512QAM		-63.8	-63.8	-63.8	-63.3	-63.3	-63.3	-62.8	-62.8	-62.8
		256QAM		-67.0	-67.0	-67.0	-66.5	-66.5	-66.5	-66.0	-66.0	-66.0
		128QAM		-69.8	-69.8	-69.8	-69.3	-69.3	-69.3	-68.8	-68.8	-68.8
		64QAM		-72.6	-72.6	-72.6	-72.1	-72.1	-72.1	-71.6	-71.6	-71.6
		32QAM		-75.2	-75.2	-75.2	-74.7	-74.7	-74.7	-74.2	-74.2	-74.2
		16QAM		-78.4	-78.4	-78.4	-77.9	-77.9	-77.9	-77.4	-77.4	-77.4
		QPSK		-84.7	-84.7	-84.7	-84.2	-84.2	-84.2	-83.7	-83.7	-83.7
	28MHz	4096QAM		-54.6	-54.6	-54.6	-54.1	-54.1	-54.1	-53.6	-53.6	-53.6
		2048QAM		-58.6	-58.6	-58.6	-58.1	-58.1	-58.1	-57.6	-57.6	-57.6
		1024QAM		-62.1	-62.1	-62.1	-61.6	-61.6	-61.6	-61.1	-61.1	-61.1
		512QAM		-65.4	-65.4	-65.4	-64.9	-64.9	-64.9	-64.4	-64.4	-64.4
		256QAM		-68.5	-68.5	-68.5	-68.0	-68.0	-68.0	-67.5	-67.5	-67.5
		128QAM		-71.3	-71.3	-71.3	-70.8	-70.8	-70.8	-70.3	-70.3	-70.3
		64QAM		-74.1	-74.1	-74.1	-73.6	-73.6	-73.6	-73.1	-73.1	-73.1
		32QAM		-76.8	-76.8	-76.8	-76.3	-76.3	-76.3	-75.8	-75.8	-75.8
		16QAM		-79.9	-79.9	-79.9	-79.4	-79.4	-79.4	-78.9	-78.9	-78.9
		QPSK		-86.2	-86.2	-86.2	-85.7	-85.7	-85.7	-85.2	-85.2	-85.2
Flange				UBR84	UBR84	UBR84	UBR100	UBR140	UBR140	UBR220	UBR220	UBR225
RSSI				Output voltage vs. RSL: 0～1.4V vs. -90～-20dBm(10dB/200mV)
RSL Accuracy				±2 dB@-80~-30dBm, ±3 dB@-90~-80dBm or -30~-20dBm
Frequency Stability				±5ppm

Frequency Source	Synthesizer
Max Input Level Without Damage	0dBm
Modulation	QPSK~4096QAM
ACM switching	Hitless
Throughput (single channel)/Mbps	Up to 2800Mbps@480MHz (anatel) ， 4Gbps@4112MHz
Switch type	10GE Layer 2	QoS	802.1p
Max frame size	10240 bytes	QoS queuing	Yes
MAC table	16k entries, auto learning & aging	VLAN support	802.1Q, QinQ
Packet buffer	8Mbit;non-blocking store & forward	Spanning tree protocol	802.1D-1998 STP&RSTP
Flow control	802.3x	Synchronization	N/A
SNMP	SNMP traps, MIB,SNMP v1/v2c/v3,
EMS	Web based HTTP, SNMP, https call
Interface	2-10GE optical, Single-mode 10G SFP
NMS Interface	Ethernet( in-band)
RSSI	Mini-BNC
Power	Coaxial cable with N-type connector
Power Supply	-48V±20%
Power Consumption	< 150W
Ambient Temperature	-35~ +55 。C
Weight &Dimension (kg/mm)	TBD
Humidity	All weather
Elevation	15,000ft / 4572 m,IP65

Capacity (Mbps)/per channel
BW Mod		QPSK	16QAM	32QAM	64QAM	128QAM	256QAM	512QAM	1024QAM	2048QAM	4096QAM
28MHz	2+0	91.9	183.6	224.6	276.5	322.6	368.5	415.7	461.0	501.8	531.7
	4+0	182.8	367.2	449.2	553.1	645.2	737.1	831.4	922.0	1003.6	1063.4
	8+0	365.6	734.4	898.4	1106.2	1290.4	1474.2	1662.8	1844.0	2007.2	2126.8
29.65MHz	2+0	97.4	194.4	237.8	292.8	341.6	390.2	440.2	488.2	531.4	563.0
	4+0	194.8	388.8	475.6	585.6	683.2	780.4	880.4	976.4	1062.9	1126.1
	8+0	389.6	777.6	951.2	1171.2	1366.4	1560.8	1760.8	1952.8	2125.9	2252.3
40MHz	2+0	130.0	260.1	320.2	396.1	462.2	528.4	594.0	662.0	720.0	768.0
	4+0	260.0	520.0	640.0	792.0	924.0	1056.0	1188.0	1324.0	1440.0	1536.0
	8+0	520.0	1040.0	1280.0	1584.0	1848.0	2112.0	2376.0	2648.0	2880.0	3072.0
56MHz	2+0	183.8	367.2	449.2	553	645.2	737	831.4	922	1003.6	1063.4
	4+0	365.6	734.4	898.4	1106.2	1290.4	1474.2	1662.8	1844	2007.2	2126.8
	8+0	731.2	1468.8	1796.8	2212.4	2580.8	2948.4	3325.6	3688	4014.4	4253.6
59.3MHz	2+0	189.6	372.1	462.0	570.2	666.3	755.5	847.5	949.9	1024.0	1064.6
	4+0	379.1	744.1	923.9	1140.3	1332.6	1510.9	1694.9	1899.7	2047.9	2129.2
	8+0	758.2	1488.2	1847.8	2280.7	2665.2	3021.7	3389.8	3799.4	4095.8	4384.4
80MHz	2+0	244.35	478.0	596.8	734.5	858.8	969.75	1086.8	1221.7	1311.4	1406
	4+0	488.7	956.0	1193.6	1469.0	1717.6	1939.5	2173.6	2443.4	2622.8	2812.0
	8+0	977.4	1912.0	2387.2	2938.0	3435.2	3879.0	4347.2	4886.8	5245.6	5624.0
112MHz	2+0	367.6	734.4	898.4	1106	1290.4	1474	1662.8	1844	2007.2	2126.8
	4+0	731.2	1468.8	1796.8	2212.4	2580.8	2948.4	3325.6	3688	4014.4	4253.6
	8+0	1462.4	2937.6	3593.6	4424.8	5161.6	5896.8	6651.2	7376	8028.8	8507.2

Note: All Specifications are typical values and subject to change without prior notice

Specification RXWU4022 Full-outdoor Packet Radio Rev C.pdf
