Panel Antenna RX-651618-26P
Product Code |
RX-651618-26P |
||
Frequency Range |
MHz |
1 ×790-960(R1) |
|
Frequency Band |
MHz |
790-862 |
862-960 |
Gain Over All Tilts |
dB i |
15.4±0.5 |
16.1 ±0.5 |
Gain by Tilt Average Min |
dB i |
15.9 |
16.6 |
Gain by Tilt Average Mid |
15.5 |
16.1 |
|
Gain by Tilt Average Max |
15.1 |
15.8 |
|
Horizontal 3dB Beam Width |
Deg |
65±7 |
63±4 |
Vertical 3dB Beam Width |
Deg |
9.6±0.6 |
8.6±0.6 |
Upper Side Lobe Suppression, Leve to 20Deg by Tilt Min |
dB |
18.7 |
|
Upper Side Lobe Suppression, Leve to 20Deg by Tilt Max |
dB |
16.6 |
|
Upper Side Lobe Suppression, Leve to 20Deg by Tilt Average |
dB |
17.5 |
|
1st Upper Side Lobe Suppression Above Main Beam |
dB |
≥15 |
≥16 |
Front to Back Ratio at 180Deg ±30Deg |
dB |
≥24 |
≥25 |
Cross-Polar Ratio 0Deg |
dB |
≥15 |
|
Port-to-port Azimuth Beam Tracking |
dB |
≤4 |
|
Electrical Downtilt |
Deg |
2-10,Continuously adjustable |
||
VSWR |
/ |
≤1.5 |
||
Cross Polar Isolation |
dB |
≥26 |
||
Interband Isolation |
dB |
≥26 |
||
Isolation Between Ranges |
≥28 |
|||
Intermodulation IM3 |
d Bc |
≤-153(2 ×43 dBm carrier) |
||
Max. Power Per Port |
Watt |
350(at 50℃ ambient temperature) |
||
Frequency Range |
MHz |
3 × 1710-2690(Y1/Y2/Y3) |
||
Frequency Band |
MHz |
1710-1920 |
1920-2300 |
2300-2690 |
Gain Over All Tilts |
dB i |
16.8±0.5 |
17.3±0.6 |
17.9±0.5 |
Gain by Tilt Average Min |
dB i |
17.3 |
17.7 |
18.4 |
Gain by Tilt Average Mid |
16.9 |
17.6 |
18.0 |
|
Gain by Tilt Average Max |
16.3 |
16.8 |
17.5 |
|
Horizontal 3dB Beam Width |
Deg |
68±5 |
65±7 |
58±5 |
Vertical 3dB Beam Width |
Deg |
6.0±0.5 |
5.3±0.6 |
4.3±0.5 |
Upper Side Lobe Suppression, Leve to 20Deg by Tilt Min |
dB |
18.5 |
||
Upper Side Lobe Suppression, Leve to 20Deg by Tilt Max |
dB |
16.8 |
||
Upper Side Lobe Suppression, Leve to 20Deg by Tilt Average |
dB |
17.8 |
||
1st Upper Side Lobe Suppression Above Main Beam |
dB |
≥15 |
≥15 |
≥16 |
Front to Back Ratio at 180Deg ±30Deg |
dB |
≥24 |
≥24 |
≥25 |
Cross-Polar Ratio 0Deg |
dB |
≥15 |
Port-to-port Azimuth Beam Tracking |
dB |
≤4 |
Electrical Downtilt |
Deg |
2-10,Continuously adjustable |
VSWR |
/ |
≤1.5 |
Cross Polar Isolation |
dB |
≥26 |
Interband Isolation |
dB |
≥26 |
Isolation Between Range |
dB |
≥28 |
Intermodulation IM3 |
d Bc |
≤-153(2 ×43 dBm carrier) |
Max. Power Per Port |
Watt |
250(at 50℃ ambient temperature) |
Max. Effective Power Whole |
Watt |
900(at 50℃ ambient temperature) |
Impedance |
Ohm |
50 |
Polarization |
Deg |
±45 |
Mechanical Specifications |
||
Antenna Dimensions |
mm |
2000 ×450 × 175 |
Antenna Net Weight |
kg |
28.2 |
Packing Dimensions |
mm |
2245 × 545 ×270 |
Antenna Gross Weight |
kg |
39.4 |
Connector Type |
/ |
8 ×4.3-10 female |
Connector Position |
/ |
Bottom |
Radiator Material |
/ |
Aluminum |
Radome Material / Color |
/ |
Fiberglass / Light Grey RAL7035 |
Reflector Material |
/ |
Aluminum |
Storage Temperature |
°C |
-55 to +65 |
Operating Temperature |
°C |
-55 to +65 |
Humidity |
/ |
5% to 95% |
Max. operational Wind Speed |
km/h |
250 |
Wind Load @Rated Wind Front |
N |
1133 |
Wind Load @Rated Wind Side |
N |
182 |
Wind Load @Rated Wind Rear |
N |
1270 |
Lightning Protection |
/ |
DC ground |
Accessories |
||
Downtilt Kit (mechanical) |
Deg |
0-12 |
Mounting Accessories (clamp) |
/ |
Included with antenna |
Mounting Pipe Diameter |
mm |
50-115 |
Internal RET Specifications |
||
RCU (remote control unit) |
/ |
Replaceable RET (can be exchangable without exchanging antenna) |
AISG2.0 /3GPP |
||
Input Voltage Range |
V |
10-30 DC |
Power Consumption |
W |
< 10 (motor activated , single RET) < 2 (stand by, single RET) |
Adjustment Time (full range) |
s |
< 120 (typically, depending on antenna type) |
RET Connector |
/ |
1 pair of A ISG 5 pin male & female |
Pin Assignment According |
5-pin circular connector conforming to IEC 60130-9 |
|
AISG |
/ |
- Ed. 3.0 |
Lightning Protection |
kA |
5 (8/20 μs differential mode), 8 (8/20 μs common mode) |
Reference Pattern |
|
790-960MHz |
|

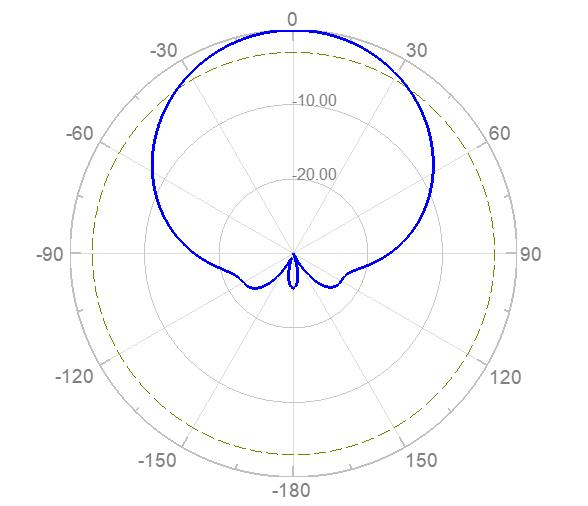

Horizontal Pattern |

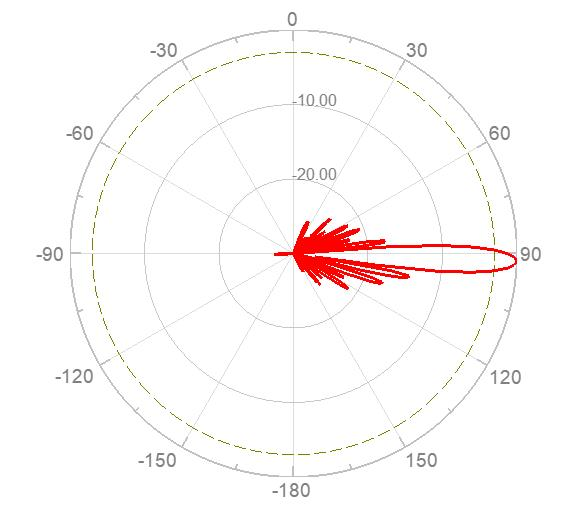

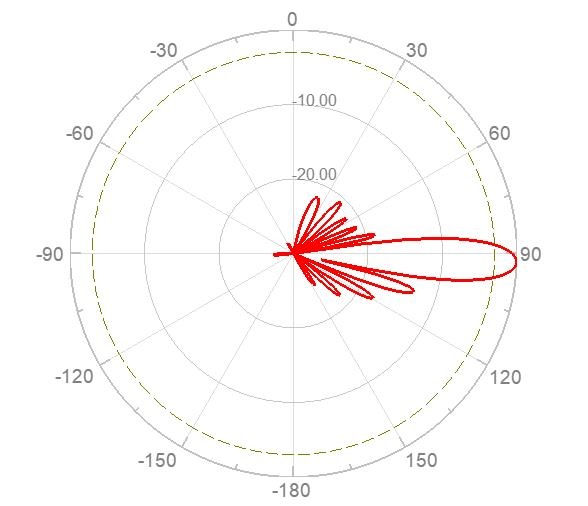

Vertical Pattern |
|
|
1710-2690MHz |
|

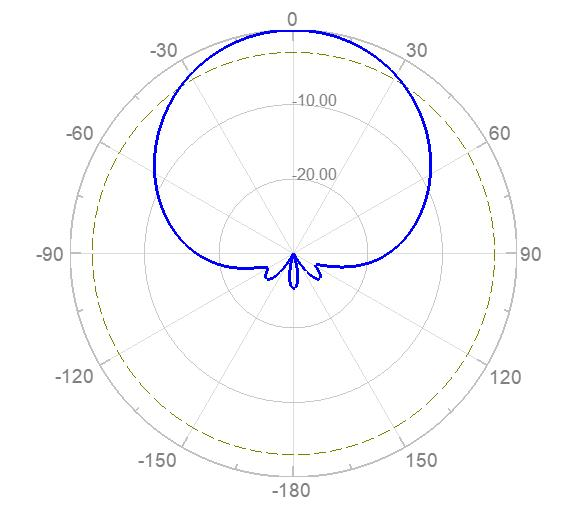

Horizontal Pattern |

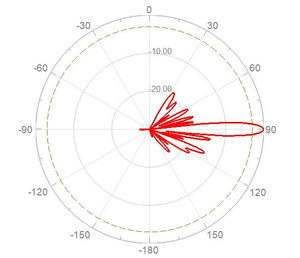

Vertical Pattern |
|
|

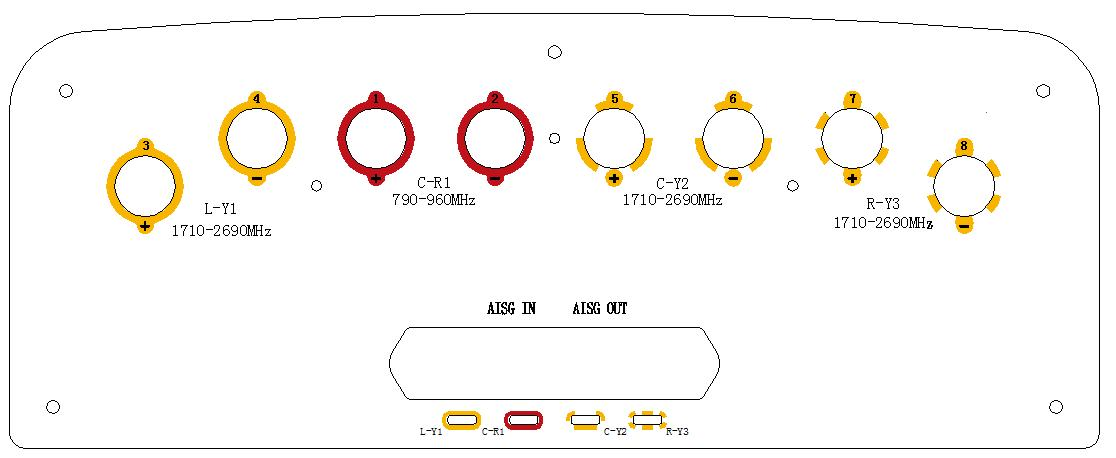

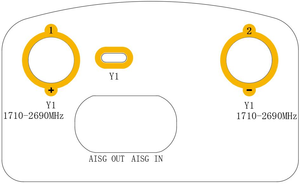

Layout of Interface |
||||
|
||||

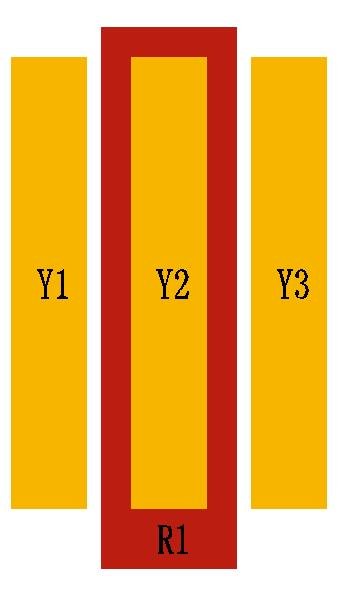

Layout of Array |
||||
Array |
Connector |
Frequency(MHz) |
RET Serial |
|
R1 |
1-2 |
790-960 |
RXR1...01 |
|
Y1 |
3-4 |
1710-2690 |
RXY1...02 |
|
Y2 |
5-6 |
1710-2690 |
RXY2...03 |
|
Y3 |
7-8 |
1710-2690 |
RXY3...04 |
|
All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V11.1). |
||||
Description |

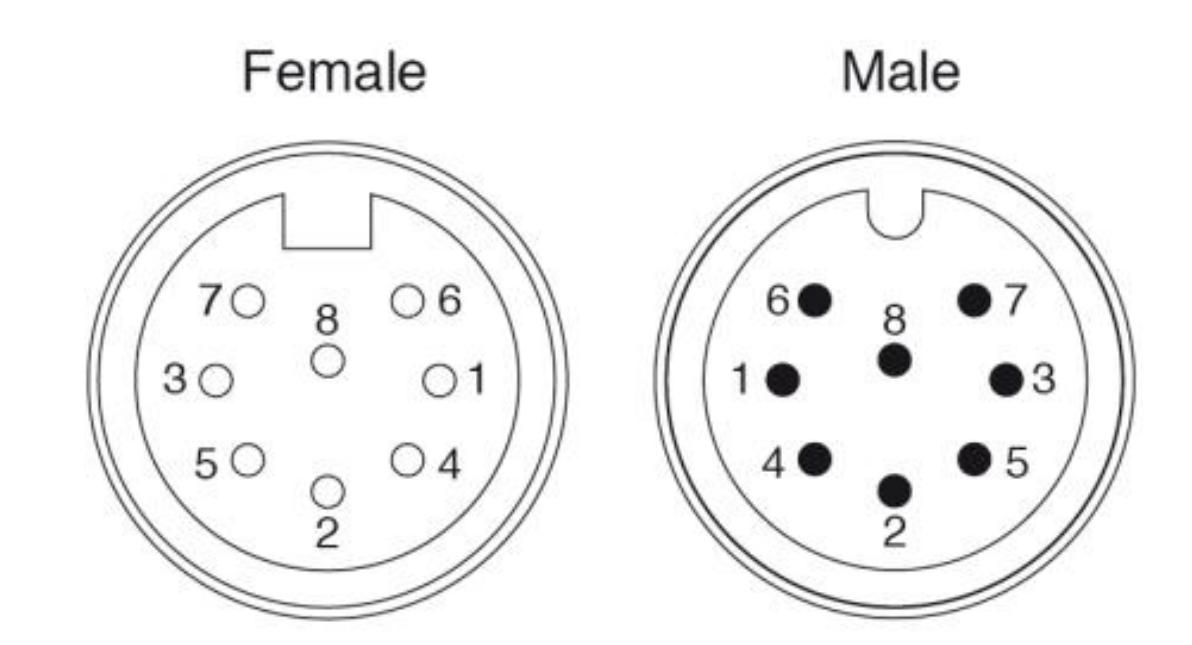

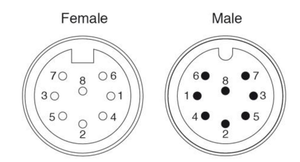

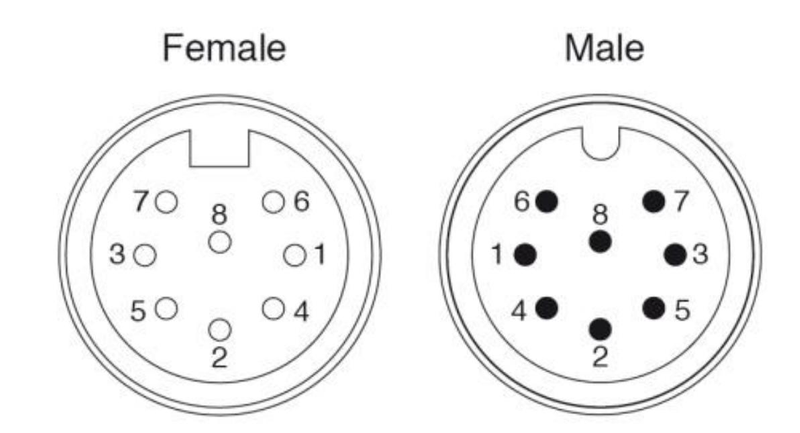

A ISG Connectors |
Connectors |
2 x 8 pin connector according to IEC 60130-9 Female / Male |
Signal |
|
Pin Number |
Signal |
1 |
+12V DC Nominal |
2 |
Not used |
3 |
RS485 B |
4 |
Not used |
5 |
RS485 A |
6 |
10V-30V DC |
7 |
DC Return |
8 |
Not used |
A ISG OUT A ISG IN
