Panel Antenna RX-651618-22P

Frequency Range

MHz

1 ×790-960(R1)

Frequency Band

MHz

790-862

862-960

Gain Over All Tilts

dB i

15.4±0.5

16.1 ±0.5

Gain by Tilt Average Min

dB i

15.8

16.5

Gain by Tilt Average Mid

15.5

16.2

Gain by Tilt Average Max

15.1

15.7

Horizontal   3dB Beam Width

Deg

68±6

64±6

Vertical 3dB Beam Width

Deg

9.7±0.8

8.7±0.6

Upper   Side Lobe Suppression,   Leve to 20Deg by Tilt Min

dB

18.5

Upper   Side Lobe Suppression,   Leve to 20Deg by Tilt Max

dB

16.1

Upper   Side Lobe Suppression,   Leve to 20Deg by Tilt Average

dB

17.6

1st Upper Side Lobe Suppression   Above Main Beam

dB

≥15

≥16

Front to Back Ratio at 180Deg  ±30Deg

dB

≥24

≥25

Cross-Polar Ratio 0Deg

dB

≥15

Port-to-port Azimuth Beam Tracking

dB

≤4

VSWR

/

≤1.5

Cross Polar Isolation

dB

≥28

Interband Isolation

dB

≥28

Intermodulation IM3

d Bc

≤-153(2 ×43 dBm carrier)

Max. Power Per Port

Watt

350(at 50℃ ambient temperature)

Frequency Range

MHz

1 × 1710-2690(Y1)

Frequency Band

MHz

1710-1920

1920-2300

2300-2690

Gain Over All Tilts

dB i

16.9±0.6

17.4±0.7

17.9±0.6

Gain by Tilt Average Min

dB i

17.4

17.8

18.4

Gain by Tilt Average Mid

17.1

17.4

18.2

Gain by Tilt Average Max

16.4

16.9

17.5

Horizontal   3dB Beam Width

Deg

67±4

64±5

57±5

Vertical 3dB Beam Width

Deg

6.1 ±0.7

5.2±0.5

4.2±0.7

Upper   Side Lobe Suppression,   Leve to 20Deg by Tilt Min

dB

18.7

Upper   Side Lobe Suppression,   Leve to 20Deg by Tilt Max

dB

16.5

Upper   Side Lobe Suppression,   Leve to 20Deg by Tilt Average

dB

17.9

1st Upper Side Lobe Suppression   Above Main Beam

dB

≥16

Front to Back Ratio at 180Deg  ±30Deg

dB

≥25

Cross-Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

0-8,Continuously adjustable

VSWR

/

≤1.5

Cross Polar Isolation

dB

≥28

Interband Isolation

dB

≥28

Intermodulation IM3

d Bc

≤-153(2 ×43 dBm carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Max. Effective Power Whole

Watt

950(at 50℃ ambient temperature)

Impedance

Ohm

50

Polarization

Deg

±45

Mechanical Specifications

Antenna Dimensions

mm

2000 × 300 × 146

Antenna Net Weight

kg

16.6

Packing Dimensions

mm

2245 ×405 ×250

Antenna Gross Weight

kg

26.5

Connector Type

/

4 ×4.3-10 Female

Connector Position

/

Bottom

Radiator Material

/

Aluminum

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-55 to +65

Operating Temperature

°C

-55 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

250

Wind Load   @Rated Wind Front

N

755

Wind Load @Rated Wind Rear

N

846

Lightning Protection

/

DC ground

Accessories

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of A ISG 5 pin male & female

Pin   Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9

- Ed. 3.0

Lightning Protection

kA

5 (8/20  μs differential mode),   8 (8/20  μs common

mode)

Reference Pattern

790-960MHz

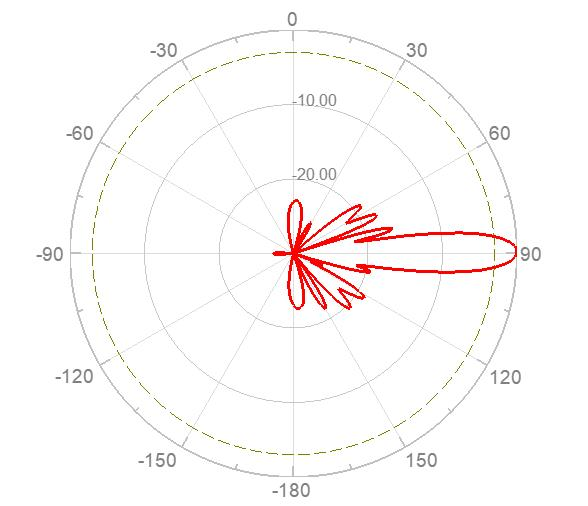

Horizontal   Pattern

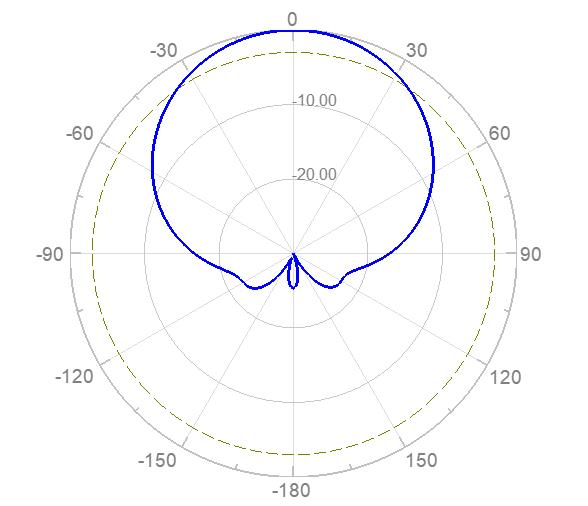

Vertical Pattern

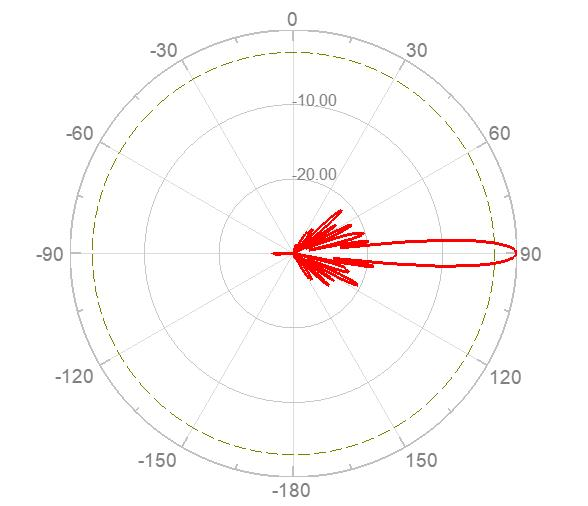

Horizontal   Pattern

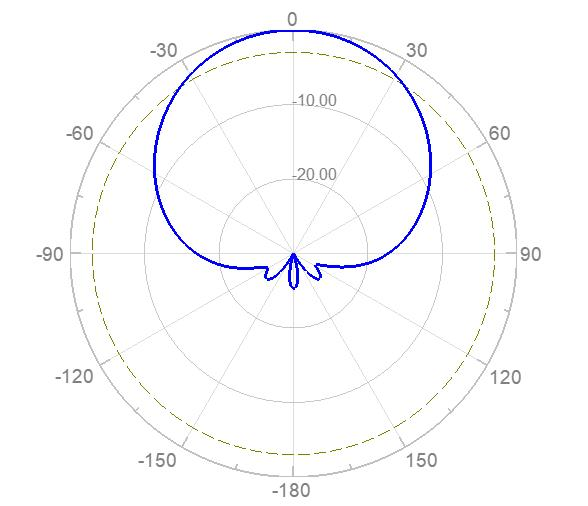

 Vertical Pattern

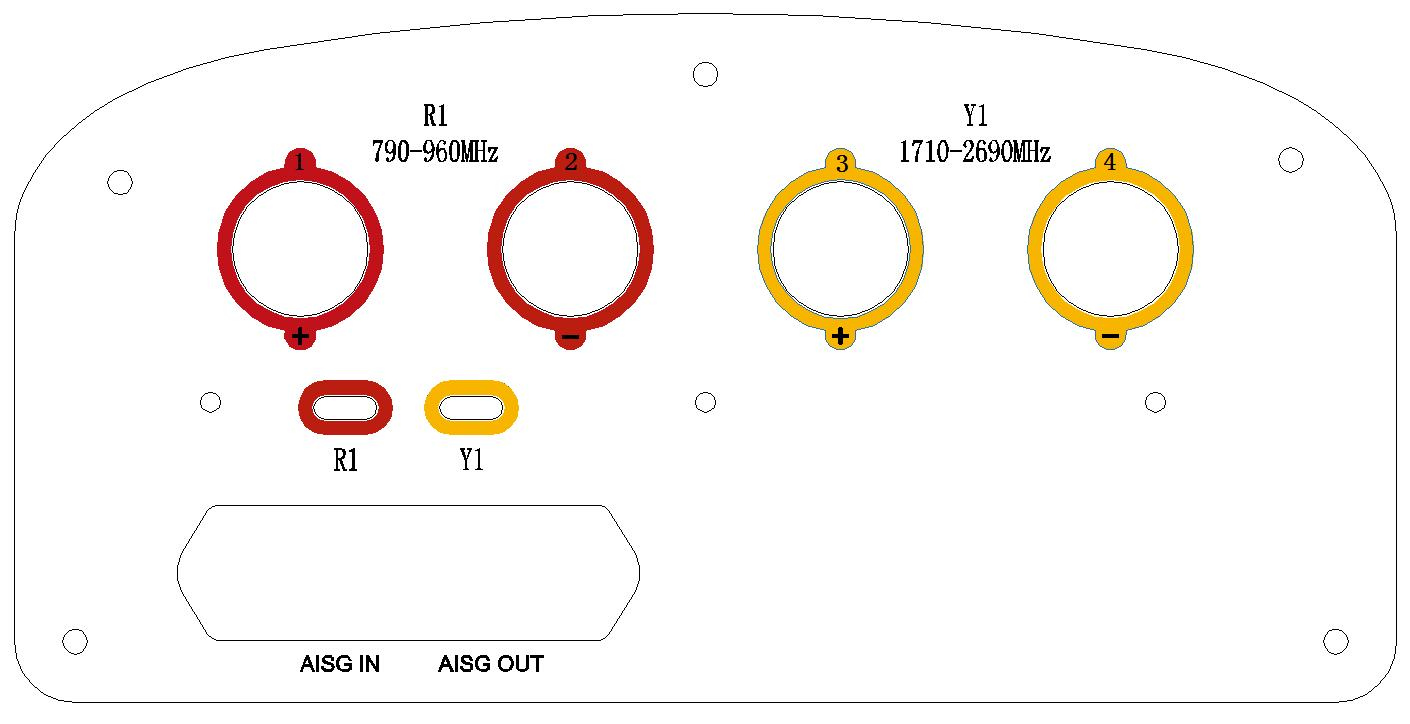

Layout of Interface

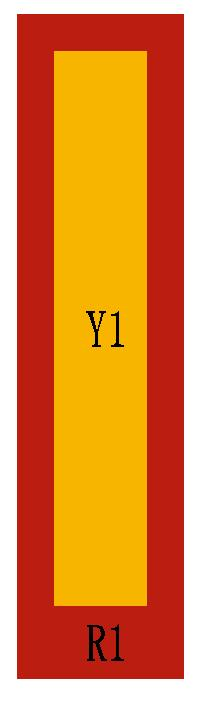

Layout of Array

Array

Connector

Frequency(MHz)

RET Serial

R1

1-2

790-960

RXR1...01

Y1

3-4

1710-2690

RXY1...02

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V11.1).

Connectors

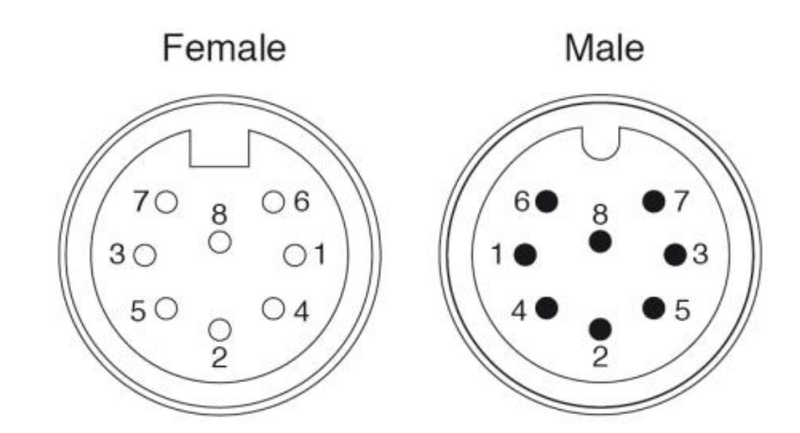

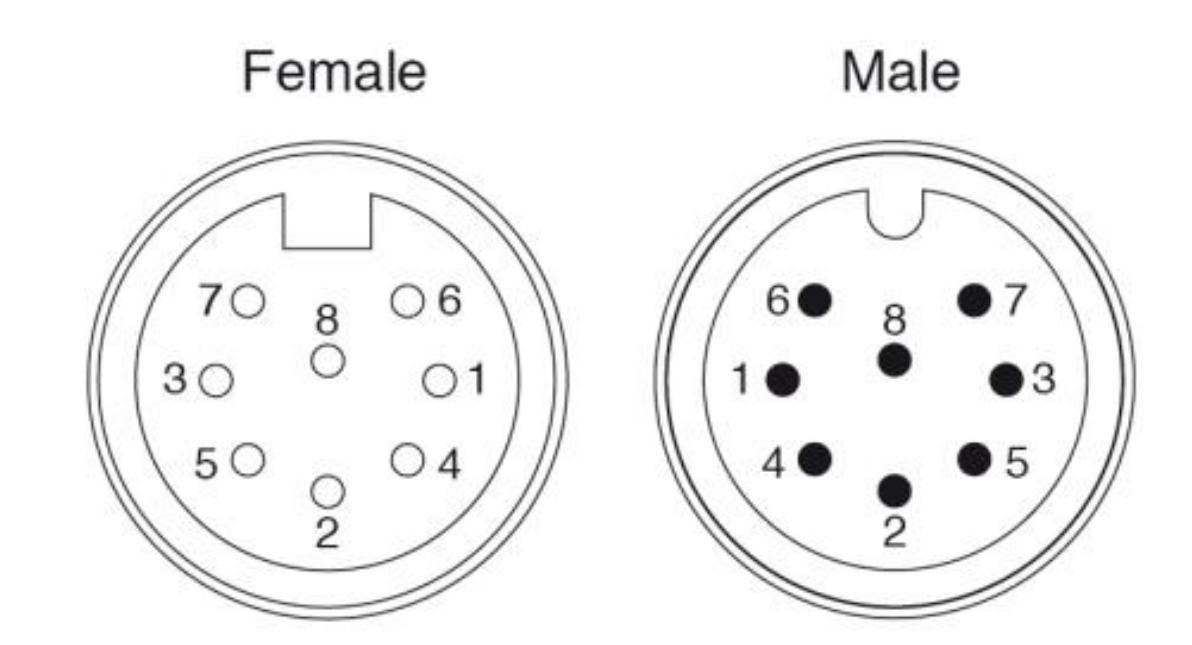

2 x 8 pin connector according to IEC 60130-9 Female / Male

Signal

Pin Number

Signal

1

+12V DC Nominal

2

Not used

3

RS485 B

4

Not used

5

RS485 A

6

10V-30V DC

7

DC Return

8

Not used
