All You Need To Know About Server Power Cords - A Complete Guide

The modern data center relies on a complex web of infrastructure where even the smallest component plays a critical role in uptime. While much attention is given to high-end processors and high-speed networking, the Server Power cord remains the fundamental lifeline of the entire ecosystem. Choosing the right power cable is not merely about finding a plug that fits; it is about ensuring electrical safety, managing heat dissipation, and optimizing space within high-density rack environments.

When selecting cables for your facility, it is essential to focus on gauge, connector types, and voltage ratings to prevent downtime. A high-quality Server Power cord ensures stable electricity delivery, reduces the risk of electrical fires, and allows for efficient airflow management within server racks by utilizing the correct lengths and configurations. Understanding these components is the first step toward building a resilient power distribution network.

In this comprehensive guide, we will explore the technical specifications of power cables, compare different connector standards like C13, C14, C19, and C20, and discuss how to manage these cables effectively. By the end of this article, you will have a clear understanding of how to select and maintain the ideal power solutions for your enterprise hardware.

Article Summary

What to Understand About Power Cords

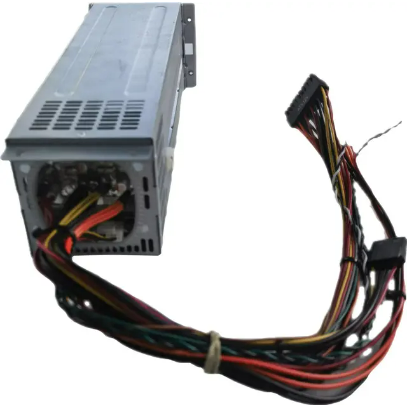

A Server Power cord is a specialized electrical assembly consisting of flexible conductors encased in an insulating jacket, designed to connect hardware to a Power Distribution Unit (PDU) or wall outlet.

Understanding the fundamentals of power cabling begins with the American Wire Gauge (AWG) system. The thickness of the wire determines its capacity to carry current without overheating. In a professional data center, 14 AWG and 18 AWG are the most common standards. A lower AWG number indicates a thicker wire, which is necessary for high-draw equipment. When calculating your total Server Power requirements, the gauge of the cable must match the amperage of the power supply to ensure long-term stability and safety.

Beyond the internal wires, the jacket material (such as SJT or H05VV-F) defines the cable's durability and flexibility. For instance, SJT (Service Junior Thermoplastic) is a standard for North American indoor use, providing adequate protection against abrasion and heat. High-density environments often require "slim" power cords that use thinner insulation materials to allow for better airflow between stacked units. If you are curious about total energy costs, you might ask how much power does a home server use compared to enterprise-grade rack systems.

The interface of the cable is equally important. Most enterprise equipment utilizes the IEC 60320 standard, which includes the ubiquitous C13/C14 and C19/C20 connectors. These are preferred over standard residential plugs because they are designed for the high-heat, 24/7 operating cycles of a server room. Selecting the right interface ensures a secure fit and minimizes the risk of arcing, which can damage sensitive electronics over time.

Key Components of Professional Cables

1. The Conductor: Usually made of high-purity copper to ensure maximum conductivity and minimal resistance.

2. The Insulation: Protects against electrical leakage and provides the necessary rigidity for the cable to maintain its shape.

3. The Connectors: Precision-molded ends that must adhere to international safety standards to prevent loose connections.

Why Do Server Power Cords Come in Different Types

The variety in Server Power cord types exists to meet specific electrical requirements, international safety regulations, and the diverse physical layouts of data center hardware.

The primary reason for the diversity in cable types is the difference in electrical load. Standard servers typically use C13 to C14 cables, which are rated for up to 10A or 15A. However, high-performance computing (HPC) nodes and large-scale switches require much more juice, necessitating C19 and C20 connectors capable of handling up to 20A. Without these distinct types, a user might accidentally plug a high-draw device into a low-capacity circuit, leading to tripped breakers or melted wires.

Furthermore, global operations require compatibility with different regional voltages. While North American centers often operate at 120V or 208V, European and Asian markets typically use 230V. Different plug heads, such as the NEMA 5-15P or the Schuko plug, are engineered to handle these specific voltages and grounding requirements. Using the correct Server Power components designed for your specific region is non-negotiable for compliance with local fire and safety codes.

Physical space and environmental factors also dictate cord variety. Angled connectors (left, right, up, or down) allow for installation in tight spaces where a straight cable would be bent at a sharp angle, potentially damaging the internal copper strands. Additionally, color-coded cables (red, blue, green) are used to visually distinguish between primary and redundant power paths (A-feed and B-feed), which is a best practice for maintaining high availability in enterprise environments.

Comparison of Popular Connector Types

Different Scenarios For Various Cabling Systems

Different cabling systems are deployed based on the density of the rack, the redundancy requirements of the facility, and the specific cooling architecture used in the data center.

In a standard enterprise rack, the goal is often simplicity and reliability. Here, 1-to-1 cabling is the norm, where each power supply is connected to a vertical PDU. However, in high-density environments where space is at a premium, "Y-splitter" cables or "daisy-chain" configurations might be considered, though they require careful load balancing. Properly managing the server power consumption of these dense clusters is vital to prevent overloading the PDU branches.

Another scenario involves mission-critical systems that require dual-corded power. In these setups, each piece of hardware has two power supplies connected to two separate power sources. This requires a "dual-path" cabling system. Using different colored Server Power cords for each path allows technicians to identify which power source is active at a glance, significantly reducing human error during emergency maintenance or equipment swaps.

Lastly, the physical environment of the data center—such as raised floors versus overhead cable trays—influences the type of cabling system used. Overhead systems typically require longer cables with specific fire-resistance ratings (like Plenum-rated jackets), whereas under-floor systems might focus on moisture resistance. Regardless of the scenario, ensuring that the Server Power cables do not block the exhaust of the hardware is essential for maintaining the thermal health of the facility.

Applications by Industry

1. Financial Services: Focus on extreme redundancy and locking connectors to prevent any accidental downtime.

2. Edge Computing: Requires compact, short cables to fit into small, uncooled enclosures at the network edge.

3. Research Labs: Often use high-amperage C19 cables to support the heavy draw of GPU clusters used for AI training.

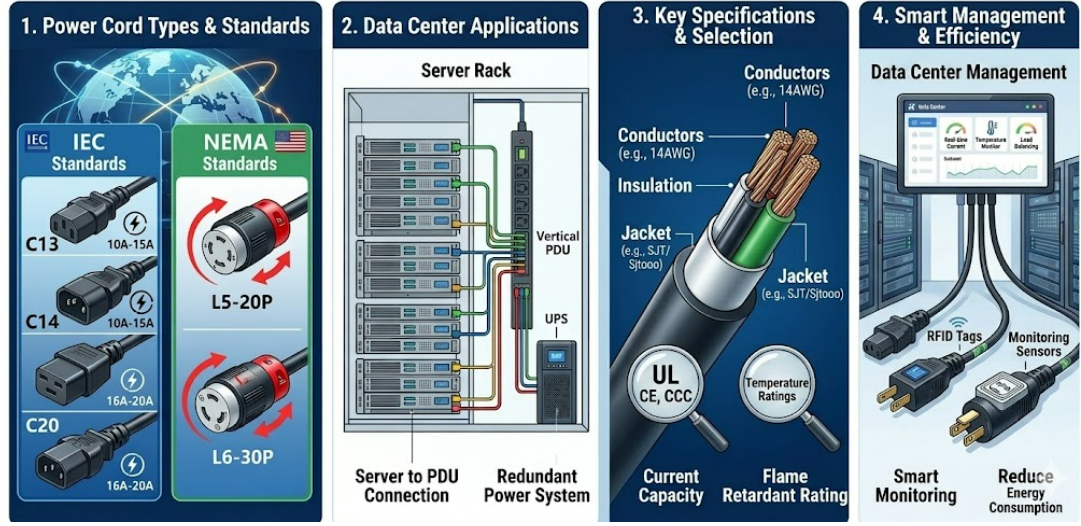

Most Common US Power Cords For Servers

The most common server power cords in the United States are the NEMA 5-15P for low-voltage applications and the IEC C13/C14 or C19/C20 standards for rack-mounted equipment.

In the US, the NEMA (National Electrical Manufacturers Association) standard governs how devices connect to building power. The NEMA 5-15P is the standard three-prong plug found in homes and offices, but it is rarely used inside a professional server rack. Instead, data centers utilize NEMA L6-30P "twist-lock" connectors for their PDUs. These connectors are designed to be inserted and turned, locking them in place so they cannot be accidentally pulled out—a common hazard in crowded IT environments.

For the connection between the server and the PDU, the IEC 60320 standard is the universal language. The C13-to-C14 cable is the "workhorse" of the industry. It is capable of supporting most mid-range hardware and is designed to operate efficiently at 208V, which is the standard voltage for US data center racks. Understanding the nuances of power use for server systems helps in choosing between these standard cords and their high-output counterparts.

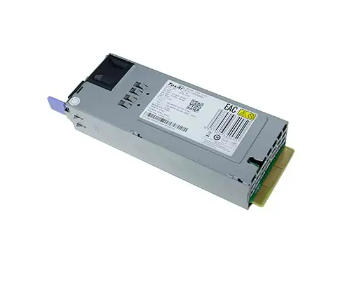

When dealing with high-capacity power supplies (usually those over 1200W), the C19 and C20 connectors become necessary. These have a rectangular shape and larger pins to handle the increased heat and current. Many US administrators are moving toward these higher-amperage cables as hardware becomes more powerful. For those building out new infrastructure, sourcing high-quality Server Power components that meet these UL (Underwriters Laboratories) standards is essential for passing safety inspections.

Common US Plug Standards

• NEMA 5-15P: Used for 120V standard outlets; common for peripherals like monitors.

• NEMA L6-20P: A 20A, 250V twist-lock plug used for connecting PDUs to the building's utility power.

• IEC C13/C14: The standard interface for almost all rack-mount servers and networking switches.

• IEC C19/C20: Used for high-draw devices like blade chassis and large UPS units.

Server Power Cord Management

Effective Server Power cord management involves using the correct cable lengths, implementing color-coding systems, and utilizing locking mechanisms to ensure maximum airflow and system uptime.

Good management starts with "right-sizing" your cables. Using a 10-foot cable when the PDU is only 2 feet away creates "cable spaghetti" behind the rack. This excess bulk blocks the hot air from exiting the server, leading to higher fan speeds and increased energy consumption. By using custom-length cables, you can create a clean, organized back-of-rack environment that facilitates better thermal management. You can learn more about managing these variables by researching server power consumption optimization techniques.

Another critical aspect of management is the use of locking power cords. In a busy data center, a technician working on one server might accidentally bump a cable on an adjacent unit, causing a catastrophic "unplug" event. Locking C13 and C19 cables feature a small mechanical latch or a proprietary friction fit that prevents the cable from being removed without a deliberate release. This simple addition can drastically increase the "mean time between failures" (MTBF) caused by human error.

Labeling and color-coding should also be a standard part of your Server Power strategy. By assigning specific colors to different power phases or different types of equipment, you make the environment much easier to navigate during a crisis. For example, using blue cables for the "A" power feed and red for the "B" power feed allows for instant verification that a server is truly redundant. Combined with horizontal and vertical cable managers (D-rings and Velcro ties), these practices transform a chaotic rack into a professional, scalable infrastructure.

Best Practices for Rack Organization

1. Use Velcro Ties: Never use plastic zip ties, as they can cinch too tightly and damage the cable insulation or conductors.

2. Label Both Ends: Always label a power cord at both the server end and the PDU end to avoid "tracing" cables in a dark rack.

3. Avoid Bending: Maintain a proper "bend radius" to prevent internal wire fatigue, which can lead to intermittent power issues.

4. Separate Power and Data: Run power cables down one side of the rack and data cables down the other to minimize electromagnetic interference (EMI).
