chip WX5025

Overview

The Netswift WX5025 chip is a 25G Ethernet controller chip with independent intellectual property rights released by Netxun Technology in 2024. It has ultra-low power consumption performance under the same working state in the industry, improves computing performance and reduces TCO. It supports up to PCIe Gen4 x8 (compatible with PCIe Gen4/3/2/1, x4/x2/x1), supports 10/25GbE Ethernet ports, and supports hardware isolation and virtualization. WX5025 provides high-performance and flexible network processing capabilities for cloud computing, network security, storage, big data analysis, database and other applications.

Interface

• Supports dual-port 25GBASE-CR (connected to SFP28 optical module), 25GBASE-KR (backplane mode, or DAC cable mode)

• Supports dual-port SFI (connected to SFP+ optical module), 10GBASE-KR (backplane mode, or DAC cable mode)

• Supports PCIe Gen4×8

Network features

• Supports IEEE standards 802.1p, 802.1Q, 802.1Qaz, 802.1Qau, 802.1Qbg, 802.2, 802.3ac, 802.3ad, 802.3az, 802.3x, 802.3z, etc.

• Supports 9.5KB jumbo frames

• Supports IEEE Virtual Ethernet Bridge (VEB), VEPA

• Supports adding and stripping VLAN tags

• Supports IEEE 1588v2, PTP

• Supports DCB

• Network packet encryption and decryption functions: MACSec/IPSec

• Supports IPv4/IPv6

• Supports packet filtering and redirection, supports MAC/VLAN-based Tag/TCP_SYN flag and five-tuple packet filtering and redirection

• Support RSS, Flow Director

Offload acceleration function

• Support IP/TCP/UDP/STCP checksum offload; support TSO, UFO, GSO, LRO, GRO

• Support VXLAN checksum offload

• Support VXLAN TSO offload

• Support GENEVE checksum offload

• Support FCoE offload; support LinkSec, IPSec offload; Ethernet CRC stripping offload

• Management and enhancement

• Precise clock: 1PPS + TOD

• BMC NCSI Support

• Enhanced network management function: MCTP over SMBus / MCTP over PCIe

• Full chip Memory ECC protection

• Better PCIe Error Recovery processing method

• Support SR-IOV (2PF, 128VF), VF multi-queue

• Support DMA queue layering, support DMA queue participation in QoS scheduling

• More flexible layered QoS mechanism

• Support 4-speed PCIe Completion Timeout range, better support for different host platforms

• More efficient PCIe bandwidth utilization

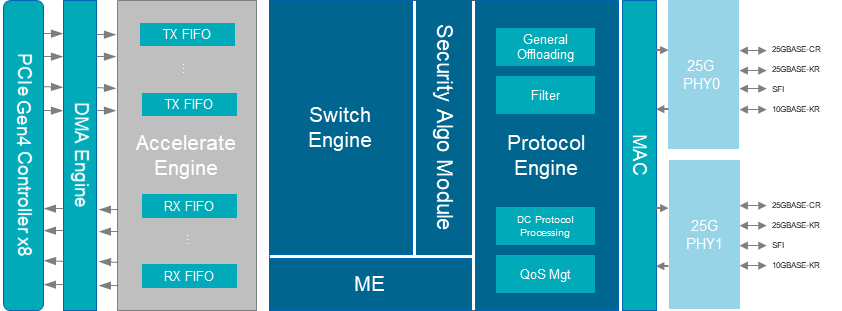

Chip architecture diagram

Specifications

Application scenarios

Cloud computing

Network security

Hyper-convergence

FC-SAN network storage

NAS network storage
