A rectifier is an electrical device that converts Alternating Current (AC), which periodically reverses direction, into Direct Current (DC), which flows in only one unidirectional path, ensuring stable power delivery for electronic components.
Understanding the intricacies of this technology is absolutely essential for industrial procurement officers, system engineers, and plant managers who are tasked with designing and maintaining resilient, high-efficiency power architectures. This comprehensive comprehensive technical guide will delve deep into the mechanical operations of rectification, explore the diverse types of rectifying circuits utilized in heavy industries, evaluate the paramount importance of rectifiers across major global applications, and answer the most frequently asked technical questions regarding modern power conversion systems.
Section | Summary |
|---|---|
How Does a Rectifier Work? | This section breaks down the foundational physics of electrical rectification, detailing how semiconductor diodes manipulate alternating current waves, contrasting half-wave and full-wave systems, and explaining the critical filtration stages required to produce continuous, reliable direct current power for sensitive systems. |
Importance of Rectifiers in Practical Applications | This section explores the indispensable role of rectification technology across diverse global industries, highlighting its application in industrial automation, heavy machinery, power grids, and explaining why optimized telecom rectifier module systems are critical for maintaining continuous runtime in data networks. |
FAQ | This section addresses the most common technical questions encountered by engineers and industrial buyers regarding power conversion, troubleshooting, performance optimization, and the selection criteria for high-efficiency rectifying modules. |
A rectifier works by utilizing unidirectional semiconductor components, primarily diodes, to selectively permit electrical current to pass through the circuit in only one specific direction while blocking current that attempts to flow in the reverse direction.
To truly grasp the operational mechanics of a rectifier, one must first look closely at the behavioral differences between Alternating Current (AC) and Direct Current (DC). Alternating current moves back and forth in a sinusoidal wave pattern, constantly shifting its polarity from positive to negative at a specific frequency, typically 50 or 60 Hz depending on the regional power grid. While this oscillating movement is ideal for transporting electricity across hundreds of miles of transmission lines without massive energy loss, it is inherently destructive to digital microchips, solid-state relays, and telecommunication transceivers, which require a constant, unyielding, and steady voltage line to process data and maintain system stability.
The core magic of rectification happens at the atomic level within the semiconductor material of a diode. A diode acts as a specialized one-way check valve for electricity; when the incoming AC voltage wave is in its positive phase (known as forward bias), the internal barrier of the diode drops, allowing the electrical current to flow freely through the circuit. Conversely, when the AC wave shifts into its negative phase (known as reverse bias), the diode instantly transforms into an incredibly high-resistance barrier, successfully stopping the electrical current from moving backward. By organizing multiple diodes into specific geometric configurations, engineers can manipulate these electrical waves to meet precise operational parameters.
The simplest form of this setup is a half-wave rectifier, which utilizes a single diode to simply eliminate the negative half of the AC cycle. While functional, this method is highly inefficient because it discards half of the incoming energy, resulting in a pulsing, disjointed power output. To achieve high efficiency, industrial applications rely on full-wave bridge rectifiers, which use an arrangement of four interconnected diodes. This elegant configuration redirects the negative portions of the alternating current wave, flipping them upward into the positive zone, effectively converting the entire AC wave into a continuous stream of positive pulses, vastly improving energy efficiency and maximizing power delivery.
However, the raw output exiting a bridge rectifier is still far from perfect; it consists of a highly rhythmic, pulsing DC voltage known as ripple voltage. To transform this rough, pulsating energy into the perfectly flat, smooth Direct Current line required by sensitive electronics, a comprehensive filtration system must be integrated directly into the power supply architecture. This is accomplished by placing heavy-duty capacitors and inductive filters immediately after the rectifying circuit. The capacitors act as ultra-rapid, localized energy storage reservoirs, charging up instantly when the rectified voltage wave hits its peak and discharging their stored energy into the circuit when the wave dips, effectively filling the electrical gaps and creating a highly stabilized, premium-quality DC output.
The importance of rectifiers in practical applications lies in their unmatched capability to provide stable, clean, and continuous Direct Current power across global telecommunications, industrial manufacturing plants, automated heavy machinery systems, and electrical transport networks.
Without high-performance rectification technology, modern commercial and industrial operations would completely collapse under the weight of power instability. Every single automated factory floor, massive data storage facility, and remote cellular broadcast tower relies completely on a steady stream of DC power to run its sensitive controller cards, high-speed computational processors, and wireless transceivers. Rectifiers serve as the primary defensive line and power translation layer, isolating delicate digital controls from the unpredictable surges, noise, and fluctuations inherent in the municipal electrical grid, safeguarding billions of dollars of critical infrastructure asset investments.
To appreciate the vast engineering scope of this technology, it is incredibly valuable to analyze exactly how rectification systems are deployed across specific, high-stakes industrial environments:

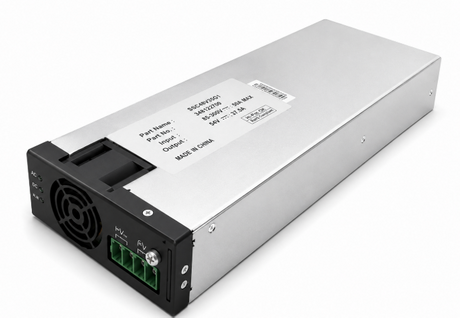

Modern cellular networks and distributed data centers cannot afford even a millisecond of power interruption without causing widespread communication blackouts. Because regional telecom hubs and remote base stations utilize sensitive 48V DC battery backup architectures to guarantee absolute uptime, they require incredibly robust, industrial-grade power transformation solutions. Incorporating a high-efficiency Telecom Rectifier Module within the central distribution hub ensures that high-voltage AC from the local grid is cleanly converted to charge critical backup batteries while simultaneously running high-capacity network transceivers. These modular systems are meticulously engineered to support hot-swapping and parallel redundancy configurations, allowing network engineers to easily replace a faulty component without taking the entire communication station offline.
Within heavy industrial environments, rectifiers are utilized to drive massive workloads that alternating current simply cannot manage effectively. For instance, in automated manufacturing plants, variable frequency drives and high-torque DC electric motors require precise, rectified voltage lines to control torque, speed, and positioning with pinpoint accuracy. Furthermore, large-scale metal fabrication facilities rely heavily on high-amperage rectification units to power intensive electrochemical processes, including industrial electroplating, aluminum smelting, and high-frequency arc welding systems, where any sudden power fluctuation would instantly ruin the structural integrity of the raw materials being processed.
As the global energy landscape undergoes a monumental shift toward sustainable power generation, rectifiers have taken on an essential role in green utility infrastructure. Solar photovoltaic panels and modern wind turbine generators produce wildly variable electrical outputs based on shifting environmental conditions. In wind power systems, the variable alternating current produced by spinning turbine blades must first pass through a large-scale rectifying system to be converted into a uniform DC line, which can then be cleanly stored in utility-scale battery arrays or efficiently inverted back into synchronized AC power for direct injection into the public electricity grid.
To better understand the distinct technical requirements across these different industries, we can compare the core specifications and design priorities in the following table:
Industrial Sector | Core Rectifier Technology Focus | Standard Voltage / Power Parameters | Primary System Objective |
|---|---|---|---|
Telecommunications | High-efficiency modular architecture, hot-swap capability, ultra-low noise output. | Typically 48V DC to 54V DC operating ranges. | Ensuring continuous data network runtime and maintaining battery storage health. |
Heavy Manufacturing | High thermal resistance, extreme amperage capacity, ruggedized chassis. | Varies widely from 240V DC up to thousands of Volts. | Driving heavy-duty electric motors and powering automated assembly lines. |
Electrochemical Industry | Constant current precision, high-capacity multi-phase bridge designs. | Low voltage, extremely high current (thousands of Amps). | Executing reliable metal electroplating, purification, and smelting processes. |
Renewable Energy | Smart grid integration, dynamic wide-input handling capabilities. | High-voltage DC link configurations. | Converting erratic, variable wind and solar inputs into stable grid-ready power. |

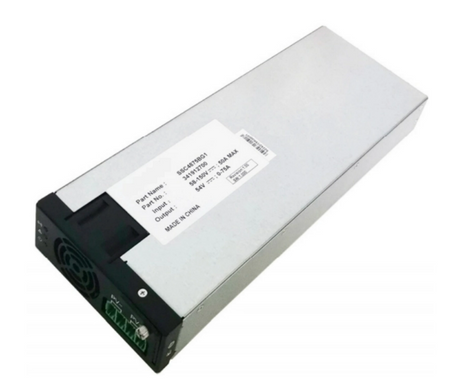

For operations looking to achieve maximum efficiency within space-constrained enclosures, deploying an advanced, compact Telecom Rectifier Module allows facilities to maximize power density while minimizing heat generation. This exceptional level of performance optimization dramatically lowers ongoing cooling costs, significantly extends the overall operational lifespan of surrounding control electronics, and drives down the total cost of ownership across the lifetime of the installation.
The FAQ section provides rapid, clear, and highly practical technical answers to the most common questions that procurement managers and engineers encounter regarding rectifier operation, maintenance, and system integration.
Industrial power systems are highly complex, and selecting the right equipment or diagnosing operational anomalies requires a deep understanding of electrical performance metrics. This specialized question-and-answer resource is designed to address those technical concerns directly, helping operators optimize their systems for peak reliability:
The core difference lies in the nature of the incoming AC power source they are designed to handle and the overall smoothness of the resulting DC output. Single-phase rectifiers connect directly to standard, everyday domestic or light commercial AC lines, utilizing either two or four diodes to process a single voltage wave; this produces a highly pulsating DC output that requires large, extensive filtration networks to smooth out completely.
Three-phase rectifiers, conversely, are engineered specifically for demanding commercial and industrial utility connections. They utilize an array of six or more diodes arranged to accept three distinct, overlapping alternating current waveforms simultaneously. Because these three phases peak at different times, the rectified output never drops down to zero, creating an inherently smoother, incredibly consistent, and highly efficient DC output that demands significantly less filtration while easily delivering massive amounts of raw power to heavy machinery.
The global telecommunications industry standardized on 48V DC power distribution decades ago for several deeply critical safety and technical reasons. First, a 48V DC line is low enough to prevent dangerous, life-threatening electrical arcing, allowing technicians to safely service live communication equipment without facing severe risks of electrocoagulation or fatal shocks. Second, direct current completely eliminates the risk of high-frequency electromagnetic interference and hum that alternating current lines naturally broadcast, which would otherwise distort sensitive voice and high-speed data signals traveling through communication lines.
To maintain this pristine operational environment, integrating a premium, ultra-reliable Telecom Rectifier Module into the power bay is absolutely essential. These specialized modules are uniquely engineered with advanced electrical filtering circuitry to achieve incredibly low Total Harmonic Distortion (THD) and eliminate output ripple voltage, ensuring that the critical data processing equipment receives completely clean, uninterrupted power while simultaneously maintaining backup battery banks at optimal charge levels.
The primary killers of industrial rectification modules are excessive thermal stress, electrical voltage surges, and environmental contamination. Because diodes naturally generate internal heat when forcing large amounts of electrical current through their semiconductor junctions, inadequate ventilation or a failure of local cooling fans will rapidly cause thermal runaway, destroying the internal silicon components. Additionally, lightning strikes or abrupt load switching on the main AC utility grid can send massive voltage spikes rushing into the rectifier, easily puncturing the delicate internal diode barriers.
