Electrical Characteristics |
|
Capacity
| Nominal capacity C1 | 500F |
|
Nominal capacity tolerance | 0%～+10% |
|
Voltage
| Nominal voltage VR | 16V DC |
|
Surge voltage VS2 | 17.1V DC |
|
ESR | Equivalent series resistance ESR1 | ≤2.1mΩ |
|
Current
| Maximum continuous current IMCC (ΔT=15℃) 3 | 122A |
|
Maximum continuous current IMCC (ΔT=40℃) 3 | 199A |
|
Maximum peak current (1s) Imax4 | 1951A |
|
Short circuit current IS5 | 7600A |
|
Leakage current IL6 | 5.2mA |
|
Self-discharge Capacity | Self-discharge rate 7 | ≥80%*VR (Passive equilibrium is not considered) |
|
Voltage | Cell specification | 2.7V 3000F |
|
Cell maximum storage energy E8 | 3.04Wh |
|

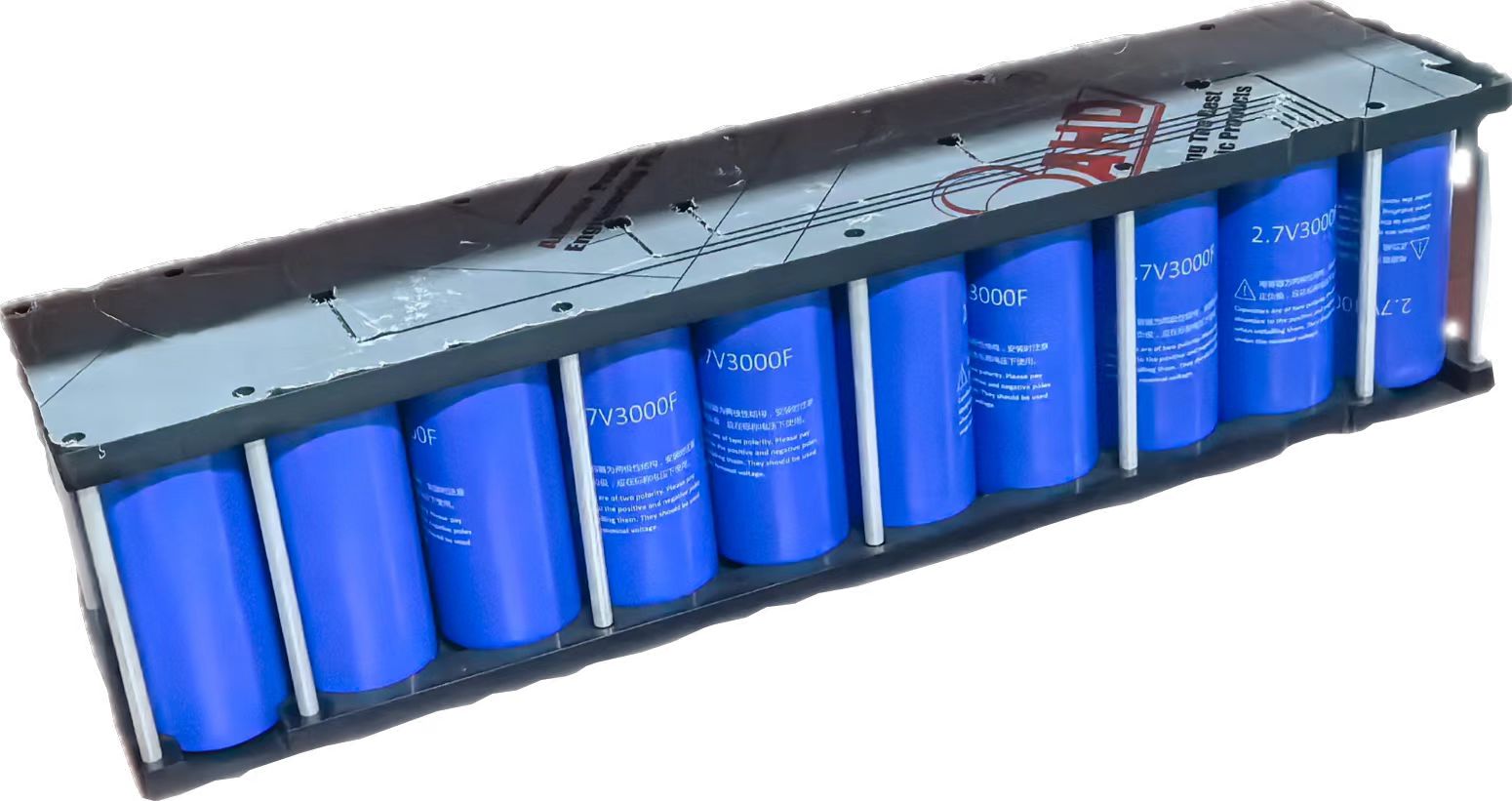

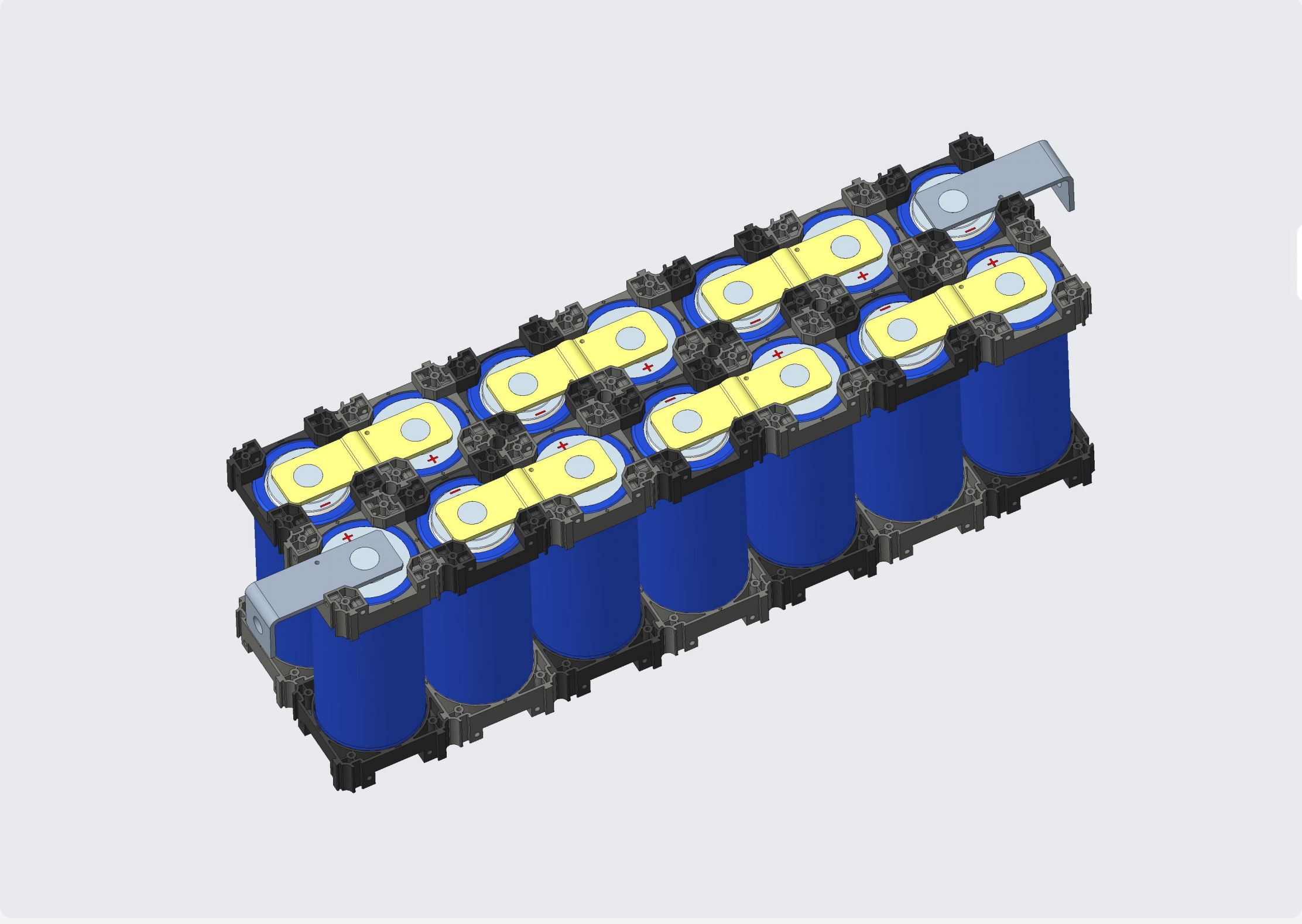

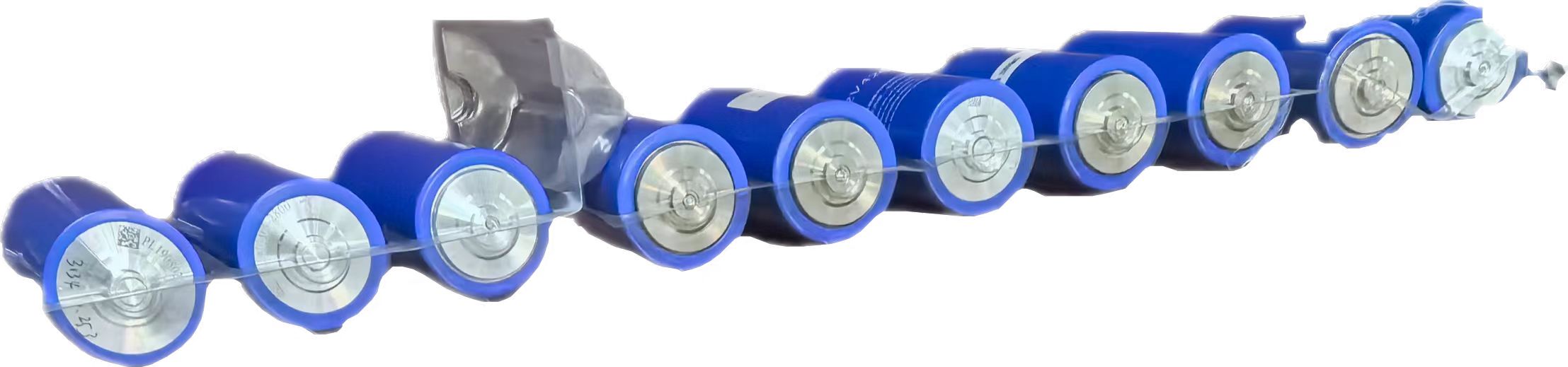

Module configuration | 1 parallel 6 series link |
|
Energy
| Maximum storage energy E8 | 17.8Wh |
|
Mass energy density Ed9 | 2.97Wh/kg |
|
Power
| Maximum power density Pmax10 | 5079W/kg |
|
Available power density Pd11 | 2438W/kg |
|
Temperature characteristics |
|
Temperature | Operating temperature range | -40～+65℃ |
|
Storage temperature range | -40～+70℃ |
|
Thermal resistance RTH12 | 0.48K/W |
|
Hot melt CTH13 | 5000J/K |
|
Life characteristics |
|
Durability DC life | DC life 65℃ nominal voltage, after working for 1500 hours |
|
Capacity change (percentage decrease relative to nominal capacity) | ≤20% |
|
Internal resistance change (percentage increase relative to maximum initial value) | ≤100% |
|
Cycle life
| 25℃ nominal voltage |
|
Expected life | 10years |
|
Capacity change (percentage decrease relative to nominal capacity) | ≤20% |
|
Internal resistance change (percentage increase relative to maximum initial value) | ≤100% |
|
Durability DC life Cycle life | Cycle between nominal voltage and half nominal voltage at constant current at 25℃ |
|
|
Cycle life | 1,000,000 cycles |
|
Capacity change (percentage decrease relative to nominal capacity) | ≤20% |
|
Internal resistance change (percentage increase relative to the maximum initial value) | ≤100% |
|
| Under 25°C environment, uncharged and unopened | 4years |
|
Safety and physical features |
|
Insulation resistance 1000V DC insulation resistance | ≥200M Ω |
|
Withstand voltage 2500V DC withstand voltage | ≤10mA |
|
Protection level | IP65 |
|
Vibration | GB/T 11287-2000 IEC 255-21-1 |
|
Shock | GB/T 14537-1993 IEC 255-21-2 |
|
Heat dissipation | Natural convection of air |
|
Output signal characteristics |
|
Output terminal | M8 (torque: 20Nm)/M10 (torque: 30Nm) |
|
Internal temperature sensor | NTC thermistor (+25℃, 10kΩ) |
|
Maximum series voltage | 800V DC |
|
Connector | Socket: DTM04-4P (module configuration) |
|
Over-temperature and over-voltage monitoring method | Plug: DTM06-4S (external configuration) |
|
Cell voltage monitoring | NTC10K, OC gate |
|
Cell voltage balance | Overvoltage alarm |
|
