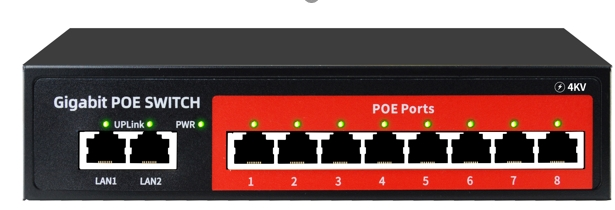

RX-M601008-S15

Description
The RX-M601008-S15, an Unmanaged Industrial POE Switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.

Features
• Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3ab , IEEE802.3z , IEEE802.3af/at/bt
• Provides 8*10/100Base-TX ports ,1*10/100/100Base-T ports, 1*Gigabit SFP port.
• Provides 8*POE ports and PoE power management
• High back-plane bandwidth 5.6Gbps
• IEEE802.3x Flow control
• Supports dual power backup
• Surge protection for power port and data ports

Quantity:
Availability:





Inquiry Add to Basket

Model:
RX-M601008-S15
Brand:
TexAi

Product Description

datasheet

Specifications

Item	Description
Hardware
Fixed port	8 10/100Base-T ports 1 10/100/1000Base-T port 1 1000Base-X port
LED Indicators	PWR, POE, Link/Act LED.
Power	DC 48V～57V power adapter
PoE Budget	96W MAX
Switching capacity	5.6Gbps
MAC address table	8K
Traffic control	IEEE 802.3x full-duplex flow control.
Operating temperature	-30℃～65℃.
Storage temperature	-40℃～70℃.
Relative humidity	5%～95% (non-condensing).
Thermal methods	Natural cooling
Size	15212444mm
PoE
PoE port	8*10/100Base-TX ports
PoE Standard	IEEE802.3af(15.4W MAX) IEEE802.3at(30W MAX) IEEE802.3bt (90W MAX)
Pin assignment	Port 1-2(bt) V+ (RJ45 Pin 1, 2,4,5), V- (RJ45 Pin 3, 6,7,8). Port 3-7(at) V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Order Information

GSM601008-S15

8xFE(POE)+1xGbE RJ-45 + 1xGbE SFP

Unmanaged Industrial POE Switch

RX-M601008-S15_DS_EN.pdf

RX-M601008-S15
