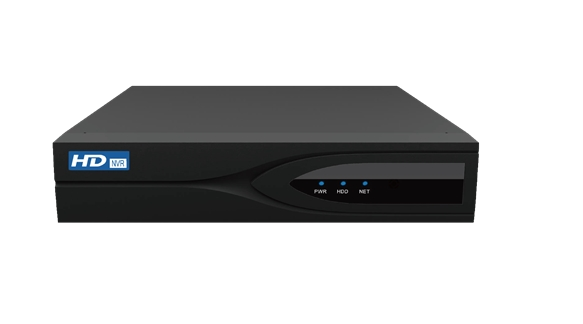

Lite Series | RX-NVR5104C-4P

Name: Lite Series | RX-NVR5104C-4P
Brand: TexAi
Rating: 5.0 (83 reviews)

4-ch 1 HDD 4 PoE 4K NVR

Max. 80 Mbps incoming; Max 4 Channel 8MP IPC input; Support ONVIF;
4-channel 1080P decoding capability; Supports adaptive decoding
Support 4K HDMI output; Up to 4channels for playback;4 PoE Ports;
Support P2P, APP Alarm Push;
AI by camera: Face Detection , Perimeter Protection, and Object Detection, and SMD
Support AI search;

Product Description

Datasheet

Technical Specifications
System
OS	Embedded Linux
OS Operation Interface	Web/operating in local GUI
Perimeter Protection by Camera
Performance	4 channels
Face Detection by Camera
Performance	4 channels
Object Detection by Camera
Performance	4 channels
SMD by Camera
Performance	4 channels
Video&Audio Input
Incoming bandwidth	80Mbps
Output bandwidth	80Mbps
IPC Input	4CH
Video&Audio Output
VGA	1920×1080,1280×1024,1280×720
HDMI	3840×2160,1920×1080,1280×1024,1280×720
Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding
Audio Compression	G.711A
Audio Bit Rate	8Kbps(16bit)
Video&Audio Decoding
IP channel Resolution	Up to 3840×2160
Video decoding	H.265（Main Profile@L5.0 High-tie）/H.264 Up to High Profile@Level5.0）
Audio decoding	G.711A,G711U,G726
Synchronous Playback	4CH
Decoding Ability	4CH 1080P@30FPS/1CH 4K@30FPS
Preview

Synchronous Preview	4
Multi-screen Display	1, 4 views
Playback
Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
AI Search	Search by target classification (human, vehicle,non-motor vehicle)
Backup	USB device
Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network
Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
Mobile Phone Access	Android; iOS
Interoperability	ONVIF; SDK
Browser	IE8 or later
HDD
SATA	1
ESATA	0
Max Capacity	14 TB
External Interface
PoE Ports	4
Network Interface	1 RJ45 100M
VGA	1
HDMI	1
CVBS	0
USB	2*USB2.0 on Back Panel
RCA Input	1
RCA Output	1
Alarm Input	0
Alarm Output	0
RS-232	0
RS-485	0
Other Function
IPC Access	Support One-Click add IPC function
Two-way Talk	Yes
Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
Picture Capture	Support JPEG Capture
General Parameter
Front Panel	C
Packing	410x293x60mm

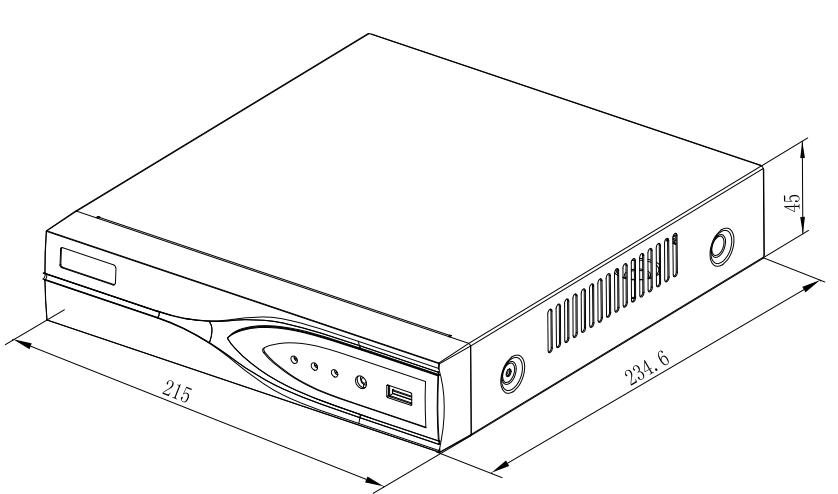

Dimensions
