LED module

Product Overview

As a premier manufacturer and supplier, we deliver high-performance LED modules engineered for exceptional visual clarity and structural reliability. Designed for seamless integration, these panels provide striking brightness, color accuracy, and operational stability for ambitious engineering projects.

• Available in indoor, outdoor, and flexible soft module configurations to suit diverse architectural needs.

• Ultra-high refresh rates up to 3840Hz ensure flawless, flicker-free image rendering.

• Standardized dimensions, including the widely adopted 320x160mm sizing, facilitate versatile application.

• Procured directly from the source factory to optimize your project supply chain and ensure consistent quality.

Product Description

Step into a world of uncompromised visual brilliance with our precision-engineered LED display modules. When you run your fingers across the surface, you immediately feel the meticulous craftsmanship—the perfectly aligned SMD diodes sit flush against a premium, anti-reflective mask that absorbs ambient light and maximizes visual contrast. The robust pure copper PCB backings feel incredibly solid to the touch, designed to dissipate heat silently and efficiently without the need for bulky, noisy cooling mechanisms. Every module is calibrated to emit a breathtakingly pure, vibrant spectrum of colors, ensuring that whether viewed from a steep angle or dead center, the imagery remains crisp, uniform, and entirely devoid of distortion.

The deep, rich blacks and blindingly bright whites create a dynamic range that instantly commands attention in any environment. Engineered for those who refuse to settle for average, these display units transform ordinary spaces into immersive visual experiences. The seamless interlocking design ensures that once assembled, the individual panels disappear, leaving only a massive, uninterrupted digital canvas. By prioritizing both aesthetic perfection and rugged internal engineering, these modules provide an unyielding foundation for your most demanding visual installations.

Product Specifications

Key Features & Highlights

Elevate your display infrastructure with features specifically designed to outperform expectations. Our LED modules are packed with advanced visual technologies that ensure your message is delivered with absolute clarity, deep contrast, and profound impact.

• Ultra-Responsive Display: Boasting a 3840Hz refresh rate, the screen eliminates flickering, ensuring fluid motion capture perfect for professional broadcasting and high-speed video playback.

• True-to-Life Color Depth: With a 14-bit grayscale, the modules render subtle gradients and intricate color transitions with breathtaking realism, avoiding the color banding seen in inferior panels.

• Adaptable Brightness: Ranging from an eye-comfortable 500 cd/㎡ for indoor environments to a piercing 4500+ cd/㎡ that cuts through direct sunlight for outdoor dominance.

• Dual Maintenance Access: Designed for ultimate operational convenience, supporting both front and rear serviceability to minimize downtime during critical events.

• Flexible Form Factors: Soft module variants allow for creative, curved, or cylindrical installations, breaking the boundaries of traditional flat screens.

Technical Specifications & Performance

Performance is the cornerstone of any premium visual installation. These modules are meticulously calibrated to deliver uncompromising technical excellence, ensuring your project meets and exceeds the highest industry standards for visual fidelity.

• Versatile Pixel Pitches: Ranging from an ultra-fine P1.2 for intimate viewing distances to P8 for massive outdoor displays, providing the perfect resolution for any spatial requirement.

• Exceptional Viewing Angles: A sweeping 140° horizontal and vertical viewing angle ensures the picture remains flawless and colors stay true, regardless of where the audience is standing.

• Optimized Power Efficiency: Operating on a stable 5V system, these units balance intense luminosity with responsible power consumption (220W to 300W), keeping long-term operational costs highly manageable.

• High-Fidelity Signal Processing: Utilizing the industry-standard HB75 input signal for rapid, error-free data transmission across massive, complex display networks.

Application & Compatibility

Seamless integration is vital for complex engineering projects. We have standardized our designs to ensure these modules fit effortlessly into your existing ecosystem, significantly reducing structural adaptation costs and accelerating project completion times.

• Universal Sizing: The widely adopted 320x160mm standard panel size allows for easy calculation, framing, and scaling of your display area without custom structural fabrication.

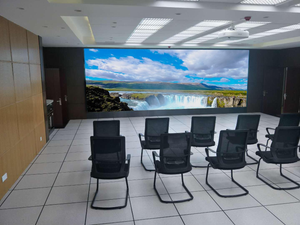

• Indoor Commercial Mastery: Perfect for corporate lobbies, control rooms, and premium retail environments where close-up clarity and silent operation are non-negotiable.

• Outdoor Architectural Integration: Built to dominate building facades, stadium perimeters, and highway billboards with unyielding visibility and weather resistance.

• Creative Soft Configurations: The flexible series adapts to architectural curves, enabling wave-like screens, ribbons, and immersive tunnel displays that captivate audiences.

Reliability & Durability

When deploying large-scale digital assets, longevity and stability dictate the return on investment. Our modules are fortified against the elements and designed from the ground up to run continuously without performance degradation.

• Extreme Temperature Resilience: Engineered to perform flawlessly in freezing -20℃ winters and blistering 55℃ summer heatwaves without thermal throttling.

• Fortified IP65 Protection: Outdoor models feature a hermetically sealed design, repelling torrential rain, airborne dust, and corrosive moisture effectively.

• Decade-Long Lifespan: Rated for up to 100,000 hours of continuous operation (outdoor models), drastically reducing the frequency of panel replacements and maintenance overhead.

• Anti-UV and Anti-Deformation: The premium mask materials resist yellowing and warping under prolonged exposure to harsh sunlight, maintaining a sleek, professional facade.

Materials & Quality Control

True quality is built from the component level up. As a dedicated source manufacturer, we procure only the finest raw materials, subjecting every batch to punishing quality assurance protocols before it leaves our facility.

• Premium SMD Diodes: Utilizing top-tier 1010 to 2525 LED packaging for superior light consistency, lower dead-pixel rates, and enhanced thermal performance.

• Pure Copper Circuitry: High-density copper PCB boards ensure rapid heat dissipation and highly stable electrical conductivity, preventing localized overheating.

• Rigorous Aging Tests: Every single module undergoes an intensive continuous aging process to identify and eliminate any potential early-stage failures before shipment.

• Electromagnetic Interference Shielding: Carefully engineered to prevent signal disruption, ensuring clean operation even in highly complex, signal-dense electronic environments.

Installation & Maintenance

Time is money on any installation site. We have engineered our LED panels to be incredibly intuitive to assemble and even easier to service, empowering your technical teams to work swiftly and safely.

• Magnetic Front Serviceability: Indoor and soft modules feature a magnetic mounting system, allowing technicians to extract and replace a panel in seconds using a simple vacuum tool.

• Accessible Rear Cabinets: Outdoor units provide spacious rear access, making power supply and receiving card diagnostics straightforward and secure.

• Precision Alignment: CNC-machined edges ensure that when panels are locked together, the seams are virtually invisible to the naked eye, creating a flawless canvas.

• Lightweight Architecture: The optimized structural design reduces the overall weight burden on mounting structures, simplifying rigging and structural engineering requirements.

Certifications & Compliance

Navigating international trade and project approvals requires strict adherence to global standards. Our manufacturing processes are fully certified, granting you absolute peace of mind during customs clearance and strict site inspections.

• CE Certified: Fully compliant with European health, safety, and environmental protection standards for seamless market entry.

• FCC Approved: Tested and verified to emit zero harmful electromagnetic interference, safe for use in sensitive commercial and residential zones.

• RoHS Compliant: Manufactured strictly without hazardous materials like lead or mercury, supporting your green building initiatives and environmental commitments.

• ISO Quality Management: Produced in a facility that adheres to rigorous ISO standards, guaranteeing consistent manufacturing excellence batch after batch.

Customization & R&D Capabilities

Standard products do not always fit visionary projects. Our robust in-house research and development team is ready to transform your unique conceptual designs into tangible, high-performance realities.

• Bespoke OEM/ODM Services: From custom PCB layouts to proprietary mask designs, we tailor the hardware to your exact physical and electronic specifications.

• Specialized Wavelengths & Brightness: Need a specific color temperature or an ultra-bright display? Our engineers can calibrate the diodes to meet strict optical requirements.

• Rapid Prototyping: Leveraging our agile manufacturing setup, we deliver custom sample modules quickly, keeping your project timeline firmly on track.

• Advanced Shape Engineering: Beyond standard rectangles, we develop custom-angled, triangular, or circular modules for avant-garde architectural integrations.

Supply Chain & Warranty

Securing a reliable source factory means eliminating middlemen and securing your supply chain. We provide the logistical muscle and post-purchase backing required for massive, time-sensitive deployments.

• Massive Production Capacity: Our automated production lines ensure we maintain deep inventory levels, facilitating swift dispatch for large-volume orders.

• Flexible Procurement: Accommodating scalable order quantities to support both localized pilot testing and nationwide rollouts seamlessly.

• Comprehensive Warranty: Backed by a solid multi-year guarantee, protecting your investment against manufacturing defects and premature component failure.

• Lifetime Technical Support: Our dedicated engineering team remains at your disposal long after the sale, providing troubleshooting, calibration advice, and system upgrade guidance.

Why Choose Us

Partnering with the right manufacturer is the most critical decision for your display network. We bring decades of specialized focus to the table, ensuring that every panel you receive is a testament to our dedication to the craft.

• Direct Factory Advantage: By eliminating intermediaries, we provide highly competitive pricing structures without compromising on premium component selection.

• Uncompromising Consistency: We ensure that diodes from the exact same bin are used across your entire order, guaranteeing perfect color uniformity across massive screen areas.

• Global Logistics Expertise: Experienced in secure, anti-static, and shock-proof packaging, ensuring your sensitive electronics arrive in pristine condition anywhere in the world.

• Proven Track Record: Trusted by integrators globally to power high-stakes environments, from international broadcasting studios to iconic outdoor landmarks.

FAQ

To assist your procurement and engineering teams, we have compiled answers to the most technical inquiries regarding our display modules.

How does the 3840Hz refresh rate impact the final visual output?

A high refresh rate of 3840Hz ensures that the display updates its image thousands of times per second. This completely eliminates the scanning lines and flickering often seen when screens are photographed or recorded on video, making it absolutely essential for television broadcasting, virtual production, and high-end corporate events.

Can the soft LED modules be bent to any radius?

While highly flexible, our soft modules have a specific minimum bending radius designed to protect the integrity of the copper traces and solder joints. They are perfect for creating smooth, sweeping curves, cylinders, and wave patterns without damaging the internal circuitry, provided they are installed within the recommended curvature limits.

What does the IP65 rating mean for the outdoor modules?

The IP65 rating signifies that the module is completely protected against dust ingress and can withstand low-pressure water jets from any direction. This guarantees reliable, uninterrupted operation during heavy rainstorms, snow, and dusty conditions typical of permanent outdoor installations.

How does front maintenance differ from rear maintenance in practical application?

Front maintenance utilizes a specialized magnetic system allowing technicians to remove the module directly from the front of the screen, which is ideal for wall-mounted indoor displays where rear access is impossible. Rear maintenance involves accessing the module from behind, typically used in large outdoor structures with built-in catwalks, allowing for safe servicing without disrupting the front-facing visual.

Why is a 14-bit grayscale important for LED displays?

Grayscale determines the number of shades available between pure black and pure white. A 14-bit system offers 16,384 shades per color channel, allowing for incredibly smooth gradients, richer details in shadow areas, and an overall more lifelike and vibrant image quality, preventing the blocky color transitions seen in lower-bit panels.
